Hot runner nozzle heating element 6.5 W/cm² | CMBPE
silicone

Hot runner nozzle heating element - 6.5 W/cm² | CMBPE - acim jouanin - silicone
Hot runner nozzle heating element - 6.5 W/cm² | CMBPE - acim jouanin - silicone
Add to favorites
Compare this product


Characteristics

Type
hot runner nozzle
Material
silicone
Power

Max.: 970 W

Min.: 65 W

Maximum temperature

340 °C
(644 °F)

Description

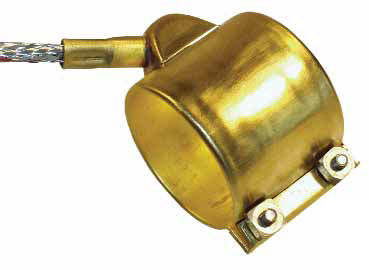

- Max. watt density over the surface of the heater: 6.5 W/cm² - Max. operating temperature over the surface of the heater: 340°C, depending on working conditions. - Diameter : 25 to 100 mm Height : 20 to 80 mm Wattage : 65 to 970 W, 230 V single phase For other dimensions, not kept in stock, see p 5 - Sealed band heater in brass, with folded ends. Band heater connection, waterproof technology. - Electric insulation by mica plate. - Connection : nickel core, fiberglass insulated + earth wire; protected by a galvanized steel braid. - Connection cap : axial 30°, centred on the height of the band heater, up to 38 mm height. Over 38 mm height, it is placed at 20 mm from the edge. (See sketch). (Except L2570C26G10*) - Square angle flange clamping, screw BTR M4, self-locking square nuts. - Our products are in accordance with EN 60335-1 Wattage tolerance: +5% -10% Leakage current < 0.75 mA/kW
