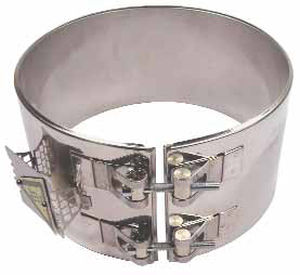

Band heater CMBTS

- Tailor-made band heaters. - Max. watt density over the surface of the heater: 4.5 W/cm²· - Max. working temperature:340°C, depending on working conditions. - Diameter : 50 to 380 mm. - Heating height : 50 to 420 mm, depending on connection type. - Clamping sheath in aluminised steel allows a proper support of heaters with important cutouts or large dimension. - Electric insulation with mica. - Connection: Without cap : wire, stud or pins terminals With cap : stud, pin terminals or braid. Cap directing : axial, radial or tangential. - Voltage: 230 V single phase (standard). Other voltages on request, from 12 to 500V. - Clamping: barrel nuts or spring loaded screws (compensated clamping) for diameters over 300 mm. - Products are in accordance with EN 60335-1 Wattage tolerance : +5% -10% Leakage current < 0.75 mA/kW
