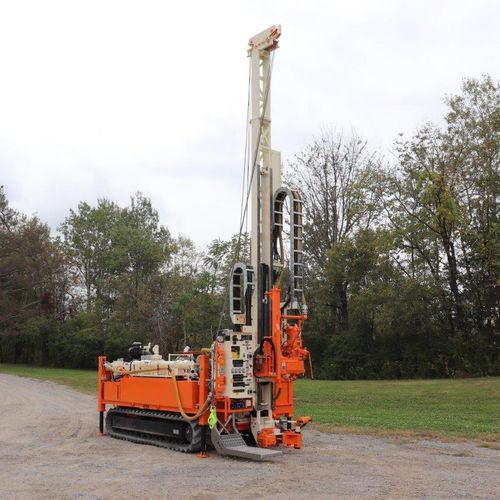

Core drilling drilling rig RENEGADE

multifunctioncrawlerrotary

Now working on four Continents, the RENEGADE has built a reputation Worldwide as a versatile, high-performance drill rig with top-notch American workmanship quality. And as the preeminent all-hydraulic multipurpose drill, the RENEGADE separates itself from the pack, just like a true American rebel. ​ What separates the RENEGADE? Drill Head offers "Best of Both Worlds" for high-torque needed for augering and high RPM needed for coring, making it the preeminent multipurpose drill rig. ​ 13 ft. [3.96 m] Drill Head Stroke. ​ 5 ft. [1.52 m] Dump Mast and Engine Leveler allow it to angle drill and drill on slopes up to a 45 degree incline. ​ Various options and configurations. Standard Equipment Power Unit – Turbo-charged (4) cylinder, 134 HP @ 2,400 rpm with 12-volt electric start. Liquid cooled. Compliant with US EPA Tier 4 Final Emissions standards. Engine Tilt - Allows for drilling on hillsides up to 45 degrees. Includes dual hydraulic cylinders. Feed – Double acting chain drive mechanism connected to a hydraulic cylinder with 13 ft. [3.96 m] stroke and capable of 20,000 pounds [9,071 kg] upward thrust and 20,000 pounds [9,071 kg] pull down. Drill Head - 4-5/8" [117 mm] spindle bore, accepts all rod and casing sizes up to "P" wireline or "H" casing. Eight infinitely variable speeds in forward and reverse. Hydraulically operated "slide type" drill head provides clearance for tool handling. Drill Head speeds are from zero to maximum rpm in each gear range. Lo-Range - 1st Gear (0-54 RPM @ 8,000 ft./lbs. torque) 2nd Gear ( 0-109 RPM @ 3,949 ft./lbs. torque) 3rd Gear (0-194 RPM @ 2,234 ft./lbs. torque) 4th Gear (0-339 RPM @ 1,266 ft./lbs. torque)
