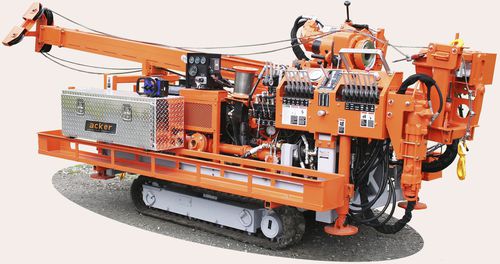

Multifunction drilling unit SOIL-SCOUT

rotary

SOIL-SCOUT Throughout the last decade, the versatile Acker SOIL-SCOUT has become a favorite of many drilling contractors throughout the country…and for good reason. At only 47-1/2” [1.21 m] wide, it is capable of traveling through areas where most track rigs aren’t capable of going, such as between houses and through tight entrance ways. And with clearance of less than 8 feet [2.44 m], it is not uncommon to find the SOIL-SCOUT drilling in parking garages, basements or any other highly restricted areas. ​ What separates the SOIL-SCOUT? Capable of traveling through tight spaces. ​ Capable of drilling under 8 ft. clearance. ​ Various options and configurations. Standard Equipment Power Unit – (4) cylinder diesel, air-cooled, 62 HP @ 2,600 rpm with 12-volt electric start. Feed – 7 ft. [2.13 m] overall feed. 4 ft. [1.21 m] stroke and capable of 11,000 pounds [4,989 kg] upward thrust and 11,000 pounds [4,989 kg] pull down. Additional 3 ft. [0.91] of Auxiliary Feed added with Mast Dump (see Mast Dump below). Drill Head - 3-5/8" [92 mm] spindle bore, accepts all rod sizes up to "HW" and casing sizes up to "N". Eight (8) infinitely variable speeds in forward and reverse. Hydraulically operated "slide type" drill head provides clearance for tool handling. Drill head speeds are from zero to maximum RPM in each gear range. Drill Head Speeds / Torque - ​ 1st Gear (0-120 RPM @ 3,028 ft./lbs. torque) 2nd Gear (0-252 RPM @ 1,452 ft./lbs. torque) 3rd Gear (0-456 RPM @ 788 ft./lbs. torque) 4th Gear (0-750 RPM @ 458 ft./lbs. torque) ​
