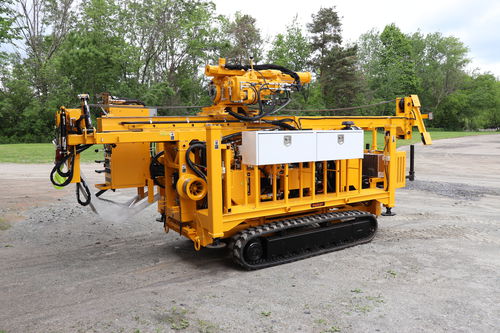

Multifunction drilling unit REBEL

crawlerrotarydiesel engine

What do you get when you combine a best-in-class multipurpose Drill Head, efficient angle drilling capability, Engine Tilt, and a turbo-charged Tier 4 Final engine, all in a compact package?..and did we mention it requires less than 13 ft. of overhead clearance? The Acker REBEL. The ultimate in power and versatility in an affordable, compact package. There's nothing else like it. What separates the REBEL? ​ Turbo-Charged Tier 4 Final Engine. ​ Drill Head offers "Best of Both Worlds" for high-torque needed for augering and high RPM needed for coring, making it the preeminent multipurpose drill rig.​ ​ 5 ft. [1.52 m] Dump Mast and Engine Leveler allow it to angle drill and drill on slopes up to a 45 degree incline. ​ Various options and configurations. Standard Equipment Power Unit – Tier 4 Final. (4) cylinder turbo-diesel, 74 HP @ 2,800 rpm with 12-volt electric start. Engine Tilt - Allows for drilling on hillsides up to 45 degrees. Feed – 6 ft. [1.82 m] stroke and capable of 15,000 pounds [6,803 kg] upward thrust and 15,000 pounds [6,803 kg] pull down. Drill Head - 3-5/8" [9.2 cm] spindle bore, accepts all rod sizes up to "HW" and casing sizes up to "N". Easy to service "bolt on" style drill head. Eight (8) infinitely variable speeds in forward and reverse. Hydraulically operated "slide type" drill head provides clearance for tool handling. Drill head speeds are from zero to maximum RPM in each gear range.
