WiFi access point RailTrack

MIMOEthernetnetwork

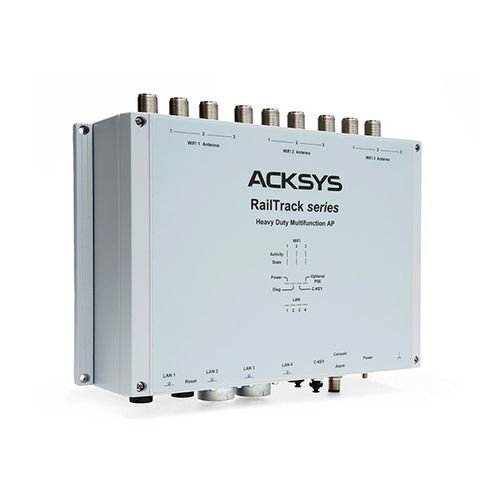

-Triple radio 802.11a/b/g/n/ac (MIMO 3T3R), up to 3 x 1.3 Gbps (radio bit rate), up to 29 dBm output power -MESH, WMM QoS, multiple SSID and centralized RADIUS security supported -WaveManager centralized management software -Auto-sensing dual Gigabit 10/100/1000 Base TX auto MDI/MDIX network interface -2 SFP slots: 1000 base X fiber optic or 10/100/1000 copper -100 VAC to 240 VAC -Rugged aluminum enclosure, IP66 seal rating Introduction RailTrack is a ruggedized WiFi access point specially designed for railway and certified for trackside and tunnel infrastructures. It can be connected to the ground network through either Gbps fiber optic or copper connections. Thanks to an oversized CPU architecture (Quad-Core 64-bit) and three independent 802.11ac high-speed radio cards (3 streams) delivering more than 900 Mbps (UDP) each, RailTrack access point allows the construction of high performance architectures such as "wireless backbone" to overcome Ethernet cables along tracksides and tunnels : 2 radios can be used to build the wireless infrastructure on the trackside while the 3rd radio is used as local AP to provide communication between trackside and onboard clients (train). Featuring an IP66 housing and rugged M12 connectors, RailTrack is ideal for wall mounting in a tunnel or mast mounting outdoor. Its all-in-one compact footprint integrates 3 radios, a 4-port Ethernet switch (2 x 10/100/1000 on M12 connectors & 2 x Gigabit optic fiber on SFP slots) with optional Ethernet bypass (daisy chain topologies) and an AC power supply. A removable key (C-KEY) allows the device configuration backup.
