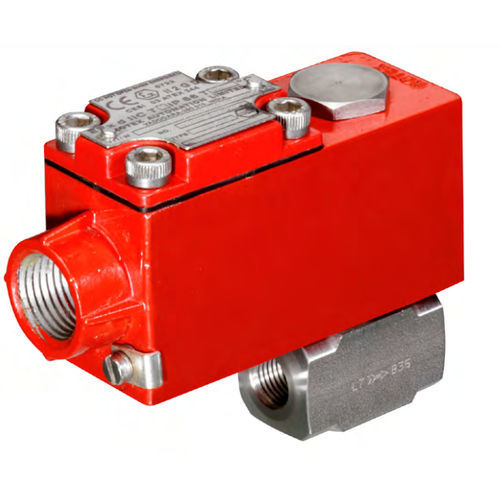

Direct-operated solenoid valve A110 series 2-wayNCfor natural gas
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 2-way
- Function
- NC
- Medium
- water, for steam, for natural gas, for oxygen, fuel oil, for chemical products
- Body
- IP66, stainless steel
- Process connection
- G 1/4, G 1/2, G 3/8, G 1/8, NPT 1/2
- Other characteristics
- ISO, ATEX, for hazardous fluids
- DN
0.125 in, 0.25 in, 0.375 in, 0.5 in
- Voltage
Max.: 230 V
Min.: 12 V
- Temperature
Max.: 80 °C
(176 °F)Min.: -10 °C
(14 °F)- Pressure
Max.: 80 bar
(1,160.3 psi)Min.: 0 bar
(0 psi)
Description
Tamb -40°C ÷ +35°C(T6) or +50°C(T5) or +60°C(T4)
CESI 03 ATEX 344 Extension No. 01/12
VALVE CONSTRUCTION
Body AISI 303
Springs AISI 302
Seal material NBR - FPM - EPDM
Housing Red colour alloy (coil A6)
Stainless steel (coil X6)
FEATURES
Maximum allowable pressure PS 100bar
Maximum fluid viscosity 25cSt (mm2/s)
Mounting position with vertical coil above
