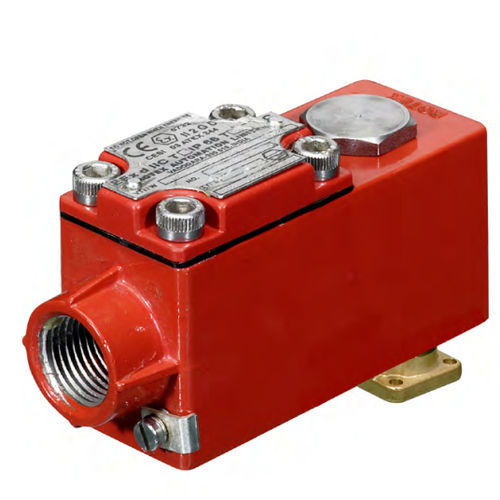

Direct-operated solenoid valve A1142-wayNCfor natural gas
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 2-way
- Function
- NC
- Medium
- water, for steam, for natural gas, for oxygen, for hydrogen, fuel oil, for chemical products
- Body
- flange, IP66, brass
- Process connection
- NPT 1/2
- Other characteristics
- ATEX, for hazardous fluids
- DN
0.5 in
- Voltage
Max.: 230 V
Min.: 12 V
- Temperature
Max.: 80 °C
(176 °F)Min.: -10 °C
(14 °F)- Pressure
Max.: 80 bar
(1,160.3 psi)Min.: 0 bar
(0 psi)
Description
CESI 03 ATEX 344 Extension No. 01/12
(other certifications e.g.EAC, INMETRO, CCOE etc. on request)
VALVE CONSTRUCTION
Seal material NBR - FPM - EPDM
EXPLOSION PROOF COIL CONSTRUCTION
Housing Red colour alloy (painted with epoxy powder)
FEATURES
Maximum allowable pressure PS 80bar
Maximum fluid viscosity 25cSt (mm2/s)
Ambient temperature: -40°C ÷ +35°C(T6), +50°C(T5), +60°C(T4)
Mounting position with vertical coil above
OPTIONS: Manual override
Electroless nickel plating
Stainless steel seat insert
