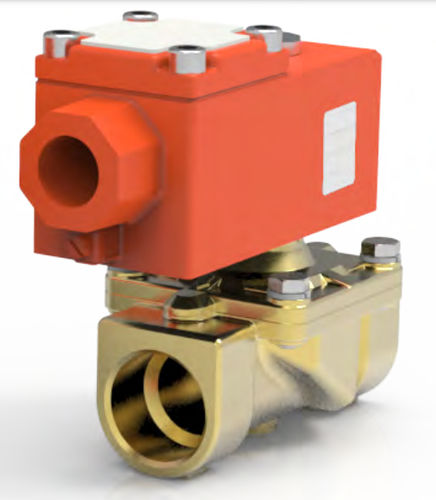

Servo-assisted solenoid valve A168
2-wayNCfor natural gas

servo-assisted solenoid valve
servo-assisted solenoid valve
Add to favorites
Compare this product


Characteristics

Control
servo-assisted
Ports/positions
2-way
Function
NC
Medium
for hot water, for steam, for natural gas, for oxygen, for hydrogen, fuel oil, for chemical products
Body
IP66, brass
Process connection
G 1/2, G 3/8, G 3/4, G 1, NPT 1/2
Other characteristics
ISO, ATEX, diaphragm, for hazardous fluids
DN

0.375 in, 0.5 in, 0.75 in, 1 in
(0.02 in)

Voltage

Max.: 230 V

Min.: 12 V

Temperature

Max.: 80 °C
(176 °F)

Min.: -10 °C
(14 °F)

Pressure

Max.: 5 bar
(72.5 psi)

Min.: 0 bar
(0 psi)

Description

Seal material FPM Housing Red colour alloy (painted with epoxy powder) FEATURES Minimum differential pressure 0bar Maximum allowable pressure PS 16bar Maximum fluid viscosity 25cSt (mm2/s) Ambient temperature: -40°C ÷ +35°C(T6), +50°C(T5), +60°C(T4) Mounting position with vertical coil above
