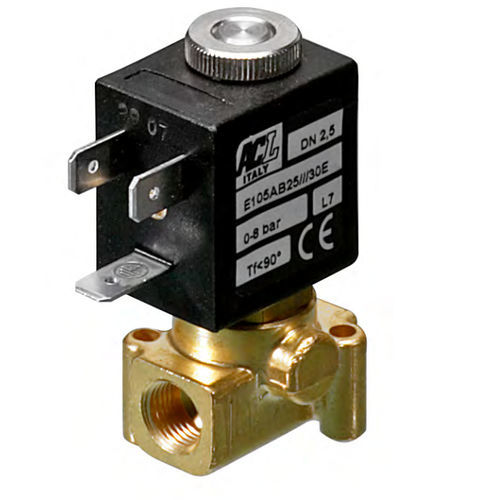

Direct-operated solenoid valve 105
2-waynormally closedfor natural gas

direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
Add to favorites
Compare this product


Characteristics

Control
direct-operated
Ports/positions
2-way
Function
normally closed
Medium
for hot water, for steam, for natural gas, for oxygen, for hydrogen, fuel oil, for chemical products
Body
IP65, brass
Process connection
G 1/8
Other characteristics
ISO, ATEX, with seal, spring, plunger
DN

0.125 in

Voltage

Max.: 380 V

Min.: 12 V

Temperature

Max.: 140 °C
(284 °F)

Min.: -10 °C
(14 °F)

Pressure

Max.: 25 bar
(362.6 psi)

Min.: 0 bar
(0 psi)

Description

Plunger and core AISI 430FR Springs AISI 302 Seal material NBR - FPM - EPDM FEATURES Maximum allowable pressure PS 50bar Maximum fluid viscosity 25cSt (mm2/s) Ambient temperature: from -10°C to +80°C according to the coil Universal mounting position OPTIONS: Stainless steel armature tube Electroless nickel plating Manual override

Catalogs

105
105
2 Pages
W105
W105
2 Pages
