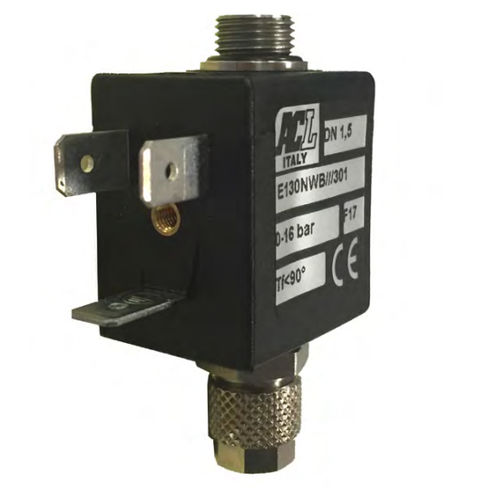

Direct-operated solenoid valve 1302-wayNCfor natural gas
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 2-way
- Function
- NC
- Medium
- for hot water, for steam, for natural gas, for oxygen, for hydrogen, fuel oil, for chemical products
- Body
- IP65, stainless steel
- Process connection
- G 1/4, G 1/8
- Other characteristics
- plunger
- DN
1 mm, 1.2 mm, 1.5 mm
(0.039 in, 0.047 in, 0.059 in)- Voltage
Min.: 12 V
Max.: 380 V
- Temperature
Min.: -10 °C
(14 °F)Max.: 140 °C
(284 °F)- Pressure
Min.: 0 bar
(0 psi)Max.: 50 bar
(725.2 psi)
Description
Body/Armature tube AISI 303
Plunger and core AISI 430FR
Springs AISI 302
Seal material NBR - FPM - EPDM
FEATURES
Maximum allowable pressure 80bar
Maximum fluid viscosity 25cSt (mm2/s)
Ambient temperature: from -10°C to +80°C according to the coil
Universal mounting position
OPTIONS: Mounting bracket
