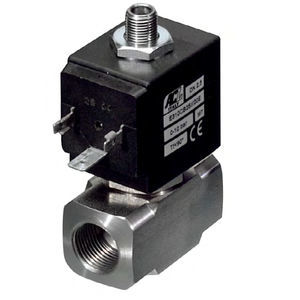

Direct-operated solenoid valve 311 series 3/2-wayNONC
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 3/2-way
- Function
- NC, NO
- Medium
- for hot water, air, for steam, for natural gas, for oxygen, for hydrogen, fuel oil, for chemical products
- Body
- stainless steel
- Process connection
- G 1/8
- Other characteristics
- ISO, ATEX, universal, with seal, spring, plunger
- DN
0.125 in
- Voltage
Max.: 380 V
Min.: 12 V
- Temperature
Max.: 140 °C
(284 °F)Min.: -10 °C
(14 °F)- Pressure
Max.: 15 bar
(217.6 psi)Min.: 0 bar
(0 psi)
Description
Body AISI 303
Armature tube AISI 303
Plunger and core AISI 430FR
Springs AISI 302
Seal material NBR - FPM - EPDM
FEATURES
Maximum allowable pressure PS 50bar
Maximum fluid viscosity 25cSt (mm2/s)
Ambient temperature: from -10°C to +80°C according to the coil
Universal mounting position
OPTIONS: Silver shading ring
Series 7 explosion proof coil according
