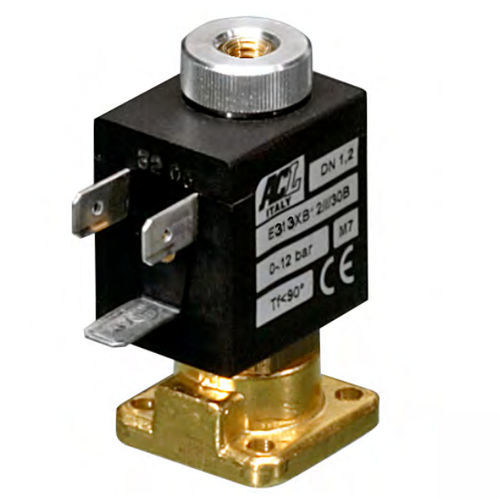

3/2-way solenoid valve 313NONCoil
Add to favorites
Compare this product
Characteristics
- Ports/positions
- 3/2-way
- Function
- NC, NO
- Medium
- for hot water, for steam, for natural gas, for oxygen, for hydrogen, oil, fuel oil, for chemical products
- Body
- IP65, brass
- Other characteristics
- ATEX, universal, with seal, spring, plunger
- DN
Min.: 1 mm
(0.039 in)Max.: 3 mm
(0.118 in)- Voltage
Min.: 12 V
Max.: 380 V
- Temperature
Min.: -10 °C
(14 °F)Max.: 140 °C
(284 °F)- Pressure
Min.: 0 bar
(0 psi)Max.: 15 bar
(217.6 psi)
Description
Armature tube Brass
Plunger and core AISI 430FR
Springs AISI 302
Seal material NBR - FPM - EPDM
FEATURES
Maximum allowable pressure PS 50bar
Maximum fluid viscosity 25cSt (mm2/s)
Ambient temperature: from -10°C to +80°C according to the coil
Universal mounting position
OPTIONS: Stainless steel armature tube
Electroless nickel plating
Series 7 explosion proof coil according
