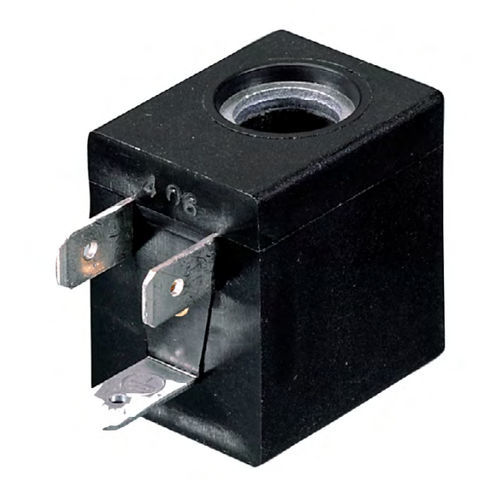

Magnetic coil 3 series
insulationfor circuitsindustrial

Magnetic coil - 3 series  - ACL S.r.l. - insulation / for circuits / industrial
Magnetic coil - 3 series  - ACL S.r.l. - insulation / for circuits / industrial
Magnetic coil - 3 series  - ACL S.r.l. - insulation / for circuits / industrial - image - 2
Add to favorites
Compare this product


Characteristics

Technology
magnetic
Electrical characteristics
insulation
Applications
industrial, for circuits
Other characteristics
encapsulated
Voltage

Max.: 380 V

Min.: 12 V

Description

Electrical connection according to DIN 43650 B (B Industrial connection) CONSTRUCTION Class F encapsulation Fibre-glass Nylon Class H encapsulation Fibre-glass Polyarylamide Magnetic circuit Zinc-plated steel Windings Copper covered with class H insulation Ambient temperature: class F -10°C +55°C class H -10°C +80°C UL coil -10°C +60°C OPTIONS: Electrical connection through cable Special powers and voltages Self-extinguish
