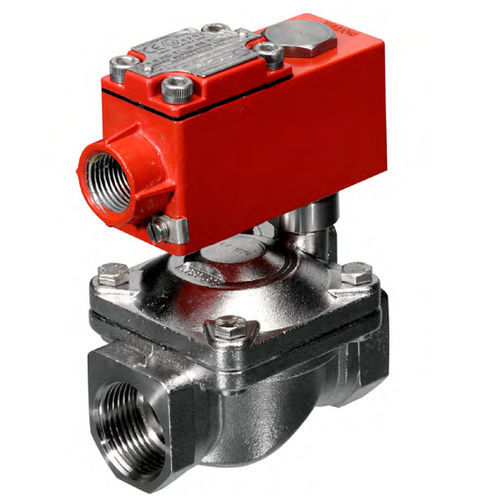

Servo-assisted solenoid valve A1772-wayNCfor natural gas
Add to favorites
Compare this product
Characteristics
- Control
- servo-assisted
- Ports/positions
- 2-way
- Function
- NC
- Medium
- for hot water, for steam, for natural gas, for oxygen, for CO2, for hydrogen, fuel oil, for chemical products
- Body
- IP66, stainless steel
- Process connection
- G 1/2, G 3/8, G 3/4, G 1, NPT 1/2
- Other characteristics
- ISO, explosion-proof, with seal, diaphragm, for hazardous fluids
- DN
Max.: 1 in
Min.: 0.375 in
- Voltage
Max.: 230 V
Min.: 12 V
- Pressure
Max.: 15 bar
(217.6 psi)Min.: 0.2 bar
(2.9 psi)
Description
ATEX II 2GDEx d IIC T6 or T5 or T4 Gb
Tamb -40°C ÷ +35°C(T6) or +50°C(T5) or +60°C(T4)
CESI 03 ATEX 344 Extension No. 01/12
(other certifications e.g.EAC, INMETRO, CCOE etc. on request)
VALVE CONSTRUCTION
Body AISI 316
Seal material FPM, NBR
EXPLOSION PROOF COIL CONSTRUCTION
Housing Red colour alloy (painted with epoxy powder)
FEATURES
Minimum allowable pressure 0.15bar
Maximum allowable pressure PS 25bar
Maximum fluid viscosity 25cSt (mm2/s)
Mounting position with vertical coil above
OPTIONS: Versions with slow closing diaphragm
Catalogs
A177
2 Pages
