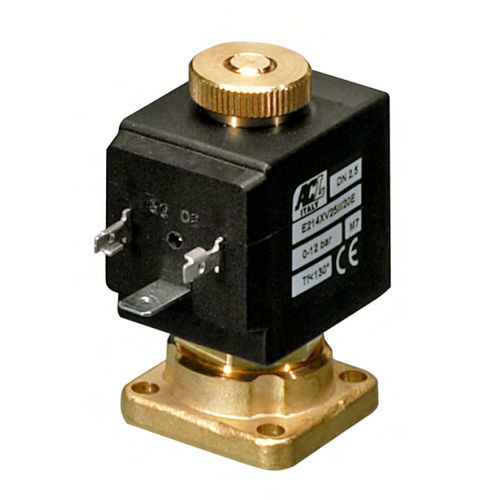

Direct-operated solenoid valve 2142-wayNOfor natural gas
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 2-way
- Function
- NO
- Medium
- for hot water, for steam, for natural gas, for oxygen, for hydrogen, fuel oil, for chemical products
- Body
- flange, IP65, brass
- DN
Max.: 4.5 mm
(0.177 in)Min.: 1.5 mm
(0.059 in)- Voltage
Max.: 380 V
Min.: 12 V
- Temperature
Max.: 140 °C
(284 °F)Min.: -10 °C
(14 °F)- Pressure
Max.: 30 bar
(435.1 psi)Min.: 0 bar
(0 psi)
Description
Armature tube Brass
Plunger and core AISI 430FR
Springs AISI 302
Seal material NBR - FPM - EPDM
FEATURES
Maximum allowable pressure PS 50bar
Maximum fluid viscosity 25cSt (mm2/s)
Ambient temperature: from -10°C to +80°C according to the coil
Universal mounting position
OPTIONS: Stainless steel armature tube
Electroless nickel plating
ON REQUEST: Versions for use with fluid temperature at -40°C
Manual override
