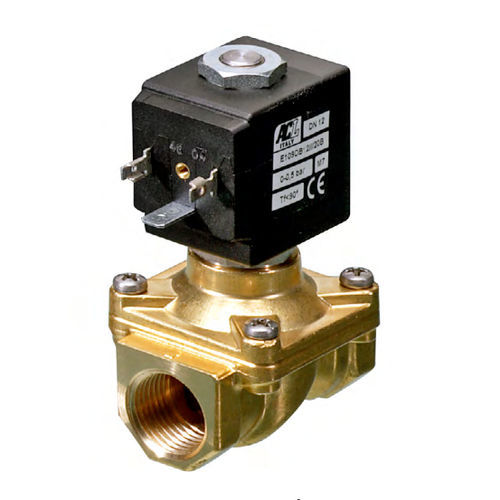

Direct-operated solenoid valve 109
2-wayNCfor natural gas

direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
Add to favorites
Compare this product


Characteristics

Control
direct-operated
Ports/positions
2-way
Function
NC
Medium
for hot water, for steam, for natural gas, for oxygen, for hydrogen, fuel oil, for chemical products
Body
IP65, brass
Process connection
G 1/2, G 3/8, G 3/4
Other characteristics
ISO, plunger
DN

0.375 in, 0.5 in, 0.75 in

Voltage

Max.: 380 V

Min.: 12 V

Temperature

Max.: 140 °C
(284 °F)

Min.: -10 °C
(14 °F)

Pressure

Max.: 0.8 bar
(11.6 psi)

Min.: 0 bar
(0 psi)

Description

Armature tube AISI 303 Plunger and core AISI 430FR Springs AISI 302 Seal material NBR - FPM - EPDM FEATURES Maximum allowable pressure PS 5bar Maximum fluid viscosity 25cSt (mm2/s) Ambient temperature: from -10°C to +80°C according to the coil Preferred mounting position with vertical coil above OPTIONS: Electroless nickel plating
