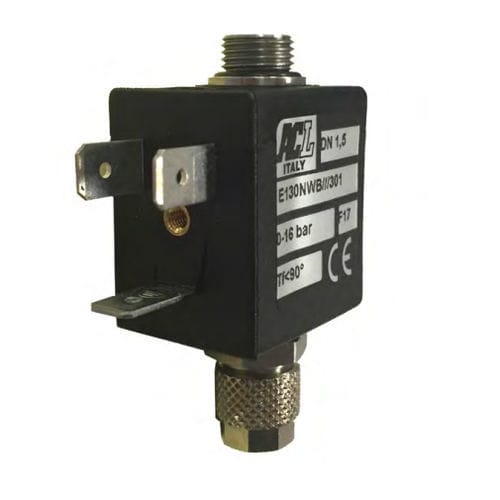

Direct-operated solenoid valve 2302-wayNOair
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 2-way
- Function
- NO
- Medium
- for hot water, air, for steam, for natural gas, for oxygen, oil, fuel oil, for chemical products
- Body
- IP65, stainless steel
- Process connection
- G 1/8
- Other characteristics
- with seal, spring, plunger
- DN
0.125 in
- Voltage
Min.: 12 V
Max.: 380 V
- Temperature
Min.: -10 °C
(14 °F)Max.: 140 °C
(284 °F)- Pressure
Min.: 0 bar
(0 psi)Max.: 10 bar
(145 psi)
Description
Plunger and core AISI 430FR
Springs AISI 302
Seal material NBR - FPM - EPDM
EATURES
Maximum allowable pressure 15bar
Maximum fluid viscosity 25cSt (mm2/s)
Ambient temperature: from -10°C to +80°C according to the coil
Universal mounting position
OPTIONS: Mounting bracket
