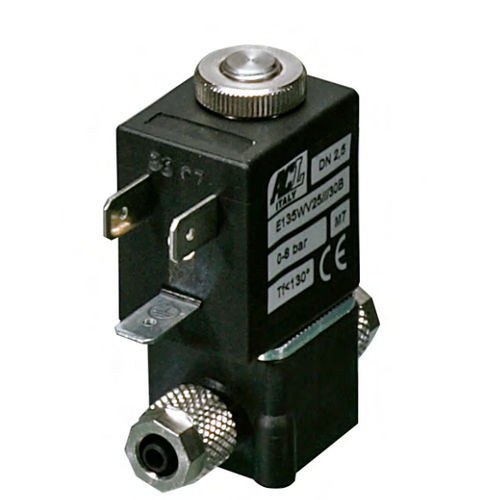

Direct-operated solenoid valve 135
2-wayNCfor food

direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
Add to favorites
Compare this product


Characteristics

Control
direct-operated
Ports/positions
2-way
Function
NC
Medium
for food, for chemical products
Body
technopolymer, IP65
Other characteristics
universal
DN

1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm
(0.059 in, 0.079 in, 0.098 in, 0.118 in, 0.157 in)

Voltage

Max.: 380 V

Min.: 12 V

Temperature

Max.: 140 °C
(284 °F)

Min.: -10 °C
(14 °F)

Pressure

Max.: 25 bar
(362.6 psi)

Min.: 0 bar
(0 psi)

Description

ACS, KTW, W270, WRAS, NSF, FDA certified Armature tube Brass chemically nickel plated Plunger and core AISI 430FR Springs AISI 302 Seal material NBR - FPM - EPDM FEATURES Maximum allowable pressure PS 30bar Maximum fluid viscosity 25cSt (mm2/s) Ambient temperature: from -10°C to +80°C according to the coil Universal mounting position OPTIONS: Stainless steel armature tube
