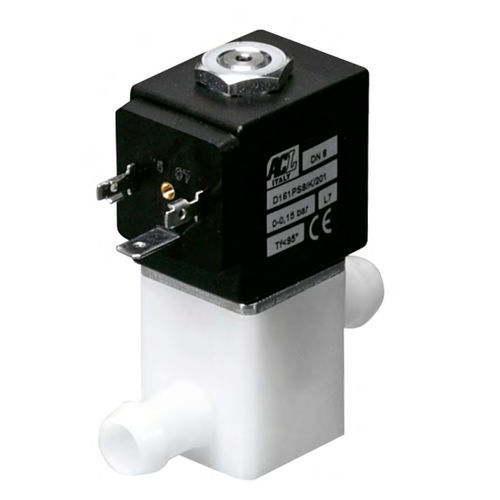

Direct-operated solenoid valve 161
2-wayNCfor chemical products

direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
Add to favorites
Compare this product


Characteristics

Control
direct-operated
Ports/positions
2-way
Function
NC
Medium
for chemical products
Body
technopolymer, IP65
Other characteristics
with seal, spring
DN

8 mm
(0.315 in)

Voltage

Max.: 380 V

Min.: 12 V

Temperature

95 °C
(203 °F)

Pressure

Max.: 0.5 bar
(7.3 psi)

Min.: 0 bar
(0 psi)

Description

No metal parts in contact with the media. CONSTRUCTION Armature tube AISI 303 Plunger and core AISI 430FR Springs AISI 302 Seal material SILICONE - FPM FEATURES Maximum allowable pressure PS 2bar Maximum fluid viscosity 25cSt (mm2/s) Ambient temperature: from -10°C to +80°C according to the coil Mounting position with vertical coil above
