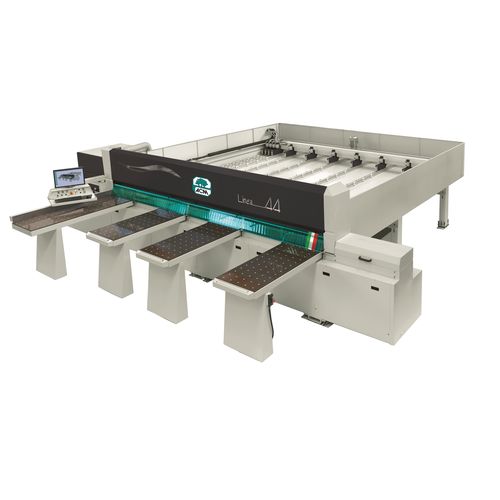

Circular sawing machine LINEA 95

horizontalwoodfor beams

Horizontal CNC panel saw, 95mm blade projection. MATERIALS Panels MANUFACTURINGS Sizing BLADE PROJECTION 95,00 mm Blade Carriage Ribbed steel structure ensuring high stiffness. Independent rise & fall of blades on precision linear guides allowing high versatility of the applications and regulations. The scoring unit blade could be disabled by CNC, when it is not required. Centralised lubricating system. Blade Change Thanks to the “Easy Shift” system, the blades change is quick, easy and safe; only one Allen key is required. Rack Transmission Blade carriage movement through tempered and hardened rack: noiselessness and precision combined with long time durability; maintenance-free. The positioning is driven by CNC through Inverter motor, speed 3-70 m/min or 3-130 m/min via brushless motor (on request). Air-Cushion System Front Tables Air-cushion front working tables coated with a scratch-proof phenolic resin, easy to replace in the case of wear. Fitted with a front roller to facilitate loading. All the tables, with the exception of fence side table, could be translated and positioned according to operator necessity
