Band sawing machine SWING 640 2"woodfor beamsprecision
Add to favorites
Compare this product
Characteristics
- Technology
- band
- Treated material
- wood
- Applications
- for beams
- Other characteristics
- precision, electric
Description

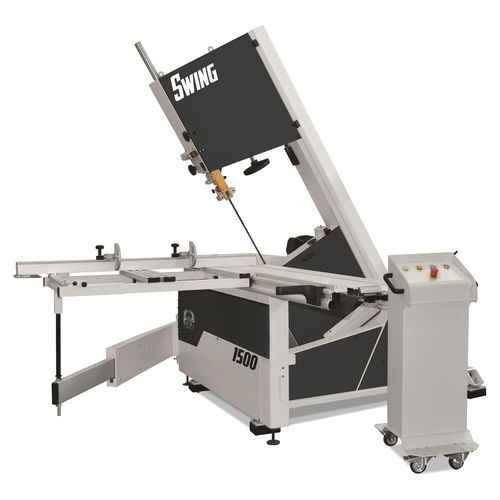

Tilting band saw with carriage
MATERIALS
Innovative materials
Aluminium and light alloys
Solid wood
Insulating materials
Plastic
MANUFACTURINGS
Cut
MAXIMUM CUTTING HEIGHT
500,00 mm
BLADE WIDTH
min 19 - max 45 mm
Suitable for cutting wood, beams, insulating materials and much more.
Guarantees safety for the operator and very high precision at every degree of inclination.
Electric band saw tilting 0°-45°
Maximum cutting height @ 45°: 300mm
STANDARD EQUIPMENT:
· 400V/3/50 self-braking motor
· Automatic star-delta starter
· Mechanical tilt indicator
· Solid flywheels (1/3 crowned in the front) without rubber
· Bronze scrapers on flywheels
· Upper saw blade guide with bearing system
· Lower saw blade guide with bearing system
· Blade tension gauge
· Rack and pinion blade guide raising with incorporated blade protection
· Trimming support table
Available with 1500/2000/2500/3200/3700 mm carriage
