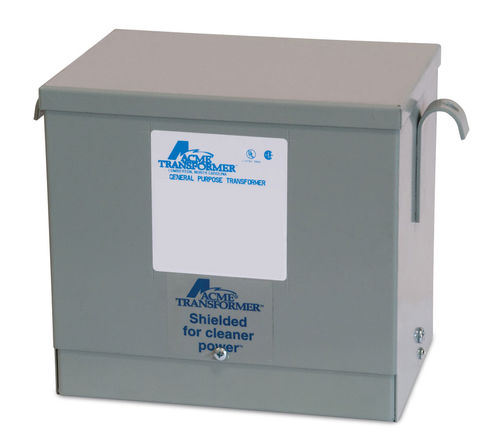

Distribution transformer T2A793/T3793/TP1310 seriesdryindustrialthree-phase
Add to favorites
Compare this product
Characteristics
- Type
- distribution
- Configuration
- dry
- Applications
- industrial
- Electrical characteristics
- three-phase
- Mounting
- floor-standing
- Other characteristics
- primary, secondary
- Electric power
Max.: 75 kVA
(101.9716 hp)Min.: 3 kVA
(4.0789 hp)- Primary voltage
600 V
- Secondary voltage
120 V, 208 V
Description
Acme’s low voltage distribution transformers are designed for industrial and commercial applications. All of Acme’s general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards. Non-linear load and harmonic mitigating transformers are designed for electrical systems with high levels of harmonic currents. Acme also offers the C3 POWERWISE energy efficiency transformer, which provides efficiency performance in excess of the U.S. DOE Candidate Standard Level 3 performance standard (NEMA Premium) requirements.
600 Delta Primary Volts - 208Y/120 Secondary Volts - 30, 60Hz
