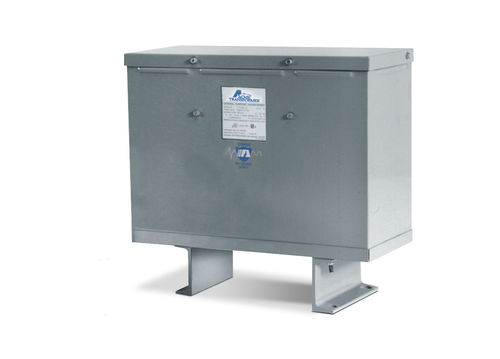

Distribution transformer TF220105S

encapsulatedindustrialthree-phase

440 Delta Primary Volts - 220Y/127 Secondary Volts - Acme three phase low voltage distribution transformers are designed for industrial and commercial applications. All of Acme general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards. -UL-3R enclosure meets or exceeds all listing criteria including NEMA, ANSI and OSHA standards -UL Class 180 deg C insulation system 115 deg C rise -Completely enclosed, suitable for indoor/outdoor service -Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air -High efficiency and excellent regulation -Sound levels below NEMA standards -Keyhole mounting slots permit installation of mounting bolts prior to hanging transformer and are accessible form the front -Wiring connections can be made outside of wiring compartment due to the use of flexible leads -Termination - Copper lead wire -Electro static provided on all 60 Hz isolation transformers -440 Delta Primary Volts; 220Y/127 Secondary Volts; 3 phase , 50Hz
