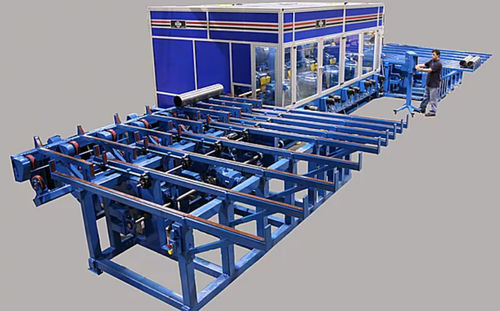

Centerless grinding machine 1210

for tubesfor round barsCNC

One of the key advantages of centerless grinding technology is the utilization of the most advanced coated abrasive belt technology available. High production throughput for DOM tubing, steel bars, titanium & inconel rods and tubing can be achieved. Our line of centerless grinders and polishers use advanced coated abrasive belt technology combined with either single or multiple head configurations, allow for a single pass operation, removing maximum stock, producing a low surface finish, at high output. The rate of stock removal and surface finish achievement is dictated by the diameter of the material and the line speed of the material being processed. Centerless Grinding Capabilities DOM tubing up to 12” O.D. (300mm) Bar stock up to 8” O.D. (200mm) Rod and tubing as small as .060” O.D. (1.5mm) Lengths as short as 2” (50mm) and up to 60’ (18m) long Utilizing our CNC/servo-motor controls, permits rapid changeover of different parts sizes in 2 to 5 minutes for multiple head systems. Materials Processed on Acme Centerless Grinding Equipment Include DOM tubing Heat treated bars Titanium & zirconium tubing (Nuclear fuel rods) Inconel rods Ceramic coated bars and tubes Glass rods Composite tubing Motor rotors Decorative tubing
