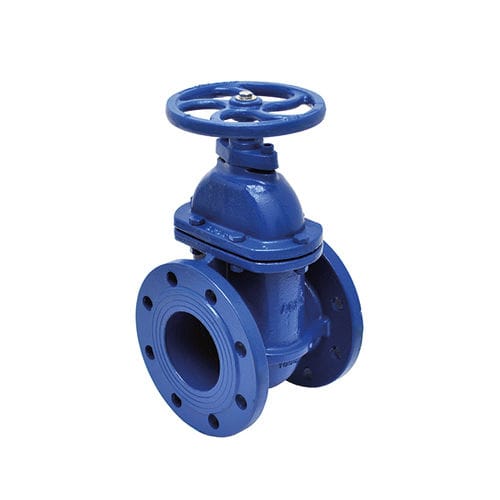

Gate valve k01a-1-2-3-5-9-10leverelectricfor control
Add to favorites
Compare this product
Characteristics
- Type
- gate
- Operation
- lever, electric
- Function
- for control
- Media
- for water
- Body
- flange, seat, stainless steel, brass, cast iron, metal, iron, coated
- Applications
- for industrial applications, for water, for water treatment, irrigation
- Number of channels
- 2/2-way
- Other characteristics
- ISO
- DN
Min.: 40 mm
(1.575 in)Max.: 1,200 mm
(47.244 in)- Pressure
10 bar, 16 bar, 25 bar, 40 bar
(145 psi, 232.1 psi, 362.6 psi, 580.2 psi)
Description
STANDARDS OF MANUFACTURE
Metal seat gate valves
EN 1171 (ISO 1083) DUCTILE IRON GATE VALVES
EN 1074-2 ISOLATING VALVES
EN 558 (ISO 5752) FACE TO FACE
EN 1092-2 (ISO 7005-2) DRILLING FLANGES
MATERIALS
BODY
EN GJL-250 CAST IRON EN 1561 (ISO 945)
EN GJS-400-15 DUCTILE IRON EN 1563 (ISO 945)
EN GJS-500-7 DUCTILE IRON EN 1563 (ISO 945)
WEDGE
EN GJL-250 CAST IRON EN 1561 (ISO 945)
EN GJS-400-15 DUCTILE IRON EN 1563 (ISO 945)
EN GJS-500-7 DUCTILE IRON EN 1563 (ISO 945)
BRASS CuZn38Pb2 EN 12164
SEAT
BRASS EN 12164
STAINLESS STEEL AISI304 EN 10088-1
STEM
STAINLESS STEEL AISI420 EN 10088-3
BRASS CuZn40Pb2Sn EN 12165
CORROSION PROTECTION
COATED INSIDE-OUTSIDE
(FBE) EPOXY 150 MICRONS (250 MICRONS)
CERTIFICATES
D.M. NR.174 – HEALTH DEPARTMENT (I)
TESTING
EN 12266-1 (ISO 5208) PRESSURE TESTS
GRADE “D”
ACCESSORIES
ELECTRIC ACTUATOR
GEARBOX
EQUIPMENT FOR UNDERGROUND INSTALLATION
RISING STEM
LEVER
