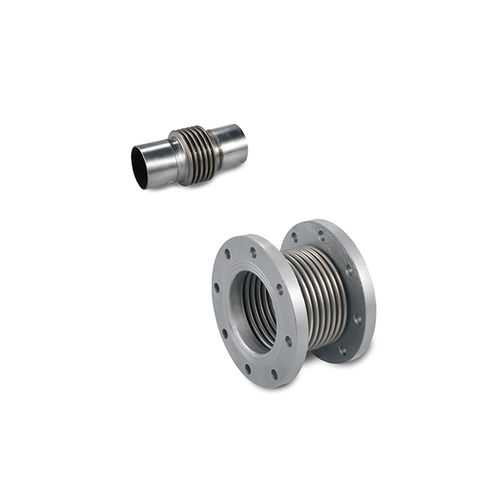

Steel pipe expansion joint k10a-2000-2010-2016roundflangeweld-on
Add to favorites
Compare this product
Characteristics
- Material
- steel
- Configuration
- round
- Installation system
- flange, weld-on
- Expansion axis
- axial
- Applications
- for water
- Nominal diameter
Max.: 1,000 mm
(39.37 in)Min.: 25 mm
(0.98 in)- Operating temperature
Max.: 80 °C
(176 °F)Min.: 0 °C
(32 °F)- Length
Max.: 487 m
(1597'09" )Min.: 117 m
(383'10" )- Pressure
10 bar, 16 bar, 25 bar, 40 bar
(145 psi, 232.1 psi, 362.6 psi, 580.2 psi)
Description
STANDARDS OF MANUFACTURE
EN 1092-1 (ISO 7005-2) DRILLING FLANGES
EJMA EXPANSION JOINT MANUFACTURES ASSOCIATION
ASME AMERICAN SOCIETY OF MECHANICAL ENGINEERS
MATERIALS
ENDS WELDING S235JR CARBON STEEL EN 10025-1
FLANGES S235JR CARBON STEEL EN 10025-1
BELLOW Tp321 STAINLESS STEEL ASTM A240
CORROSION PROTECTION
COATED INSIDE-OUTSIDE
(FBE) EPOXY 250 MICRONS
CERTIFIATES
D.M. NR174 – HEALTH DEPARTMENT (I)
TESTING
EN 12266-1 (ISO 5208) PRESSURE TESTS
ACCESSORIES
INTERNAL SLEEVE
EXTERNAL PROTECTION
Catalogs
No catalogs are available for this product.
See all of ACMO S.p.A.‘s catalogs
Related Searches
- Pipe expansion joint
- Round pipe expansion joint
- Flange pipe expansion joint
- Tube clamp
- Rubber pipe expansion joint
- Metal pipe expansion joint
- Metal pipe clamp
- Axial pipe expansion joint
- Weld-on pipe expansion joint
- Water pipe expansion joint
- Bolt tube clamp
- Steel pipe expansion joint

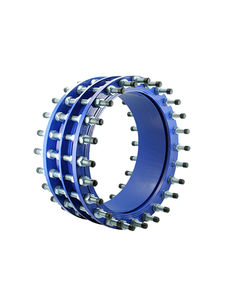

- Dismantling joint
