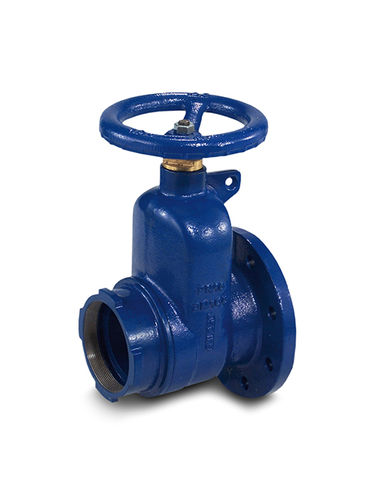

Gate valve ACMO IRRIwith handwheelfor controlisolation
Add to favorites
Compare this product
Characteristics
- Type
- gate
- Operation
- with handwheel
- Function
- for control, isolation
- Media
- for water
- Body
- stainless steel, brass, cast iron, aluminium, galvanised steel, coated
- Applications
- irrigation
- Other characteristics
- ISO
- DN
Min.: 80 mm
(3.15 in)Max.: 125 mm
(4.921 in)- Pressure
16 bar
(232.1 psi)
Description
STANDARDS OF MANUFACTURE
EN 1171 (ISO 1083) DUCTILE IRON GATE VALVES
EN 1074-2 ISOLATING VALVES
EN 1092-2 (ISO 7005-2) DRILLING FLANGES
MATERIALS
BODY
FIG.11-12-13 – CAST IRON EN GJL-250 EN 1561
FIG.11S-12S-13S – DUCTILE IRON EN GJS-400-15 EN 1563 (ISO 945)
SEAT
BRASS CuZn39Pb2 + NBR EN 12164 + EN 681-1
STEM
STAINLESS STEEL AISI420 X20Cr13 EN 10088-3
WEDGE
BRASS CuZn39Pb2 EN 12164
CORROSION PROTECTION
COATED INSIDE-OUTSIDE
(FBE) EPOXY 150 MICRONS
TESTING
EN 12266-1 PRESSURE TESTS
GRADE “A”
ACCESSORIES
SPHERICAL MALE JOINT
WITH FAST PLUG ALUMINIUM ELBOW
WITH FAST CONNECTION GALVANIZED STEEL ELBOW
