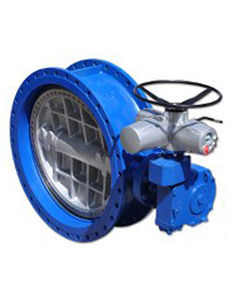

Butterfly valve k03c-TRIPLEXpneumaticelectricfor control
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- pneumatic, electric
- Function
- for control
- Media
- for water
- Body
- flange, stainless steel, carbon steel, epoxy, metallic, coated, triple-offset
- Applications
- for water
- Other characteristics
- ISO
- DN
Max.: 2,400 mm
(94.488 in)Min.: 50 mm
(1.969 in)- Pressure
10 bar, 16 bar, 25 bar, 40 bar, 64 bar
(145 psi, 232.1 psi, 362.6 psi, 580.2 psi, 928.2 psi)
Description
STANDARDS OF MANUFACTURE
EN 593 METALLIC BUTTERFLY VALVES
EN 1074-1 VALVES FOR WATER SUPPLY
EN 1074-2 ISOLATING VALVES
EN 558-1 S13 (ISO 5752) FACE TO FACE
EN 1092-1 (ISO 7005-2) DRILLING FLANGES
MATERIALS
BODY A216 WCB CARBON STEEL ASTM A216
DISC A216 WCB CARBON STEEL ASTM A216
SEAL RING AISI304+GRAPHITE(THIN PLATE) EN 10088-3
BODY SEALING AISI420 STAINLESS STEEL EN 10088-3
STEM X20Cr13 AISI420 STAINLESS STEEL EN 10088-3
CORROSION PROTECTION
COATED INSIDE-OUTSIDE
(FBE) EPOXY 250 MICRONS
CERTIFIATES
D.M. NR.174 – HEALTH DEPARTMENT (I)
TESTING
EN 12266-1 (ISO 5208) PRESSURE TESTS
ACCESSORIES
ELECTRIC ACTUATOR
OIL-DYNAMIC ACTUATOR
PNEUMATIC ACTUATOR
WITH OVERSPEED SYSTEM
