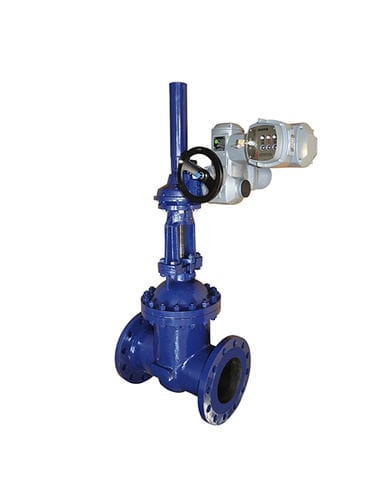

Gate valve k01e – 27-28-31-32-33-34-35-36electricfor controlfor water
Add to favorites
Compare this product
Characteristics
- Type
- gate
- Operation
- electric
- Function
- for control
- Media
- for water, for oil, for gas, for steam
- Body
- flange, seat, stainless steel, carbon steel, epoxy, coated
- Applications
- for oil industry applications
- Other characteristics
- ISO
- DN
Min.: 40 mm
(1.575 in)Max.: 800 mm
(31.496 in)- Pressure
Min.: 16 bar
(232.1 psi)Max.: 100 bar
(1,450.4 psi)
Description
STANDARDS OF MANUFACTURE
EN 1171 (ISO 1083) CARBON STEEL GATE VALVES
EN 1074-2 ISOLATING VALVES
EN 1092-1 (ISO 7005-2) DRILLING FLANGES
FEATURES
FIG. 27-28-31-32-33-34-35-36
MATERIALS
BODY CARBON STEEL 1.0619 EN 10213
COVER CARBON STEEL 1.0619 EN 10213
WEDGE CARBON STEEL 1.0619 EN 10213
STEM STAINLESS STEEL AISI420 X20Cr13 EN 10088-1
CORROSION PROTECTION
COATED INSIDE-OUTSIDE
EPOXY 150 MICRONS
ALUMINIUM
CERTIFIATES
D.M. NR.174 – HEALTH DEPARTMENT (I)
TESTING
EN 12266-1 PRESSURE TESTS
GRADE ‘D’
ACCESSORIES
GEARBOX
ELECTRIC ACTUATOR
