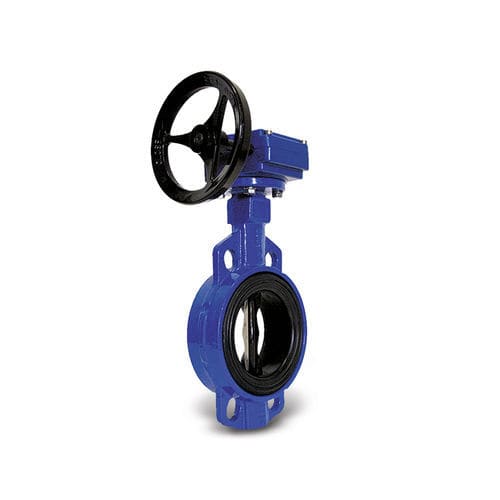

Butterfly valve FLleverpneumaticelectric
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- lever, pneumatic, electric
- Function
- for control
- Media
- for water
- Body
- wafer, stainless steel, cast iron, bronze, aluminum, metallic, coated
- Applications
- for water
- Other characteristics
- ISO
- DN
Max.: 1,200 mm
(47.244 in)Min.: 25 mm
(0.984 in)- Pressure
10 bar, 16 bar, 25 bar
(145 psi, 232.1 psi, 362.6 psi)
Description
STANDARDS OF MANUFACTURE
EN 593 METALLIC BUTTERFLY VALVES
EN 1074-1 VALVES FOR WATER SUPPLY
EN 1074-2 ISOLATING VALVES
EN 558 S20 (ISO 5752) FACE TO FACE
EN 1092-2 (ISO 7005-2) DRILLING FLANGES
MATERIALS
BODY
FIG.310-310A-311-311A-312-312A-312/25-313-313A – EN GJS-250 CAST IRON EN 1561 (ISO 945)
FIG.310N-311N-312N-313N – EN GJS-400-15 DUCTILE IRON EN 1563 (ISO 945)
DISC
FIG.310-310A-310N – EN GJS-400-15 DUCTILE IRON EN 1563
FIG.311-311A-311N – AISI304 STAINLESS STEEL EN 10088-3
FIG.312-312A-312/25-312N – AISI316 STAINLESS STEEL EN 10088-3
FIG.313-313A-313N – BRONZE-ALUMINUM EN 1982
SEAT
EPDM EN 681-1 (ISO 4633 – ISO 9631) (OPT. NBR-VITON-NEOPRENE-SILICONE-HYPALON-FLUCAST)
STEM
AISI420 (OPT. AISI304, AISI316) STAINLESS STEEL EN 10088-3
CORROSION PROTECTION
COATED INSIDE-OUTSIDE
(FBE) EPOXY 120 MICRONS
CERTIFIATES
D.M. NR.174 – HEALTH DEPARTMENT (I)
TESTING
EN 12266-1 (ISO 5208) PRESSURE TESTS
GRADE “A”
ACCESSORIES
LEVER CONTROL
GEARBOX CONTROL
ELECTRIC CONTROL
PNEUMATIC CONTROL
