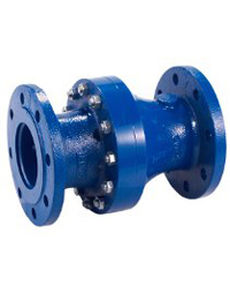

Membrane check valve ACMO-STOPfor waterDINflange
Add to favorites
Compare this product
Characteristics
- Type
- membrane
- Fluid
- for water
- Connexion
- DIN
- Body
- flange
- Material
- ductile iron
- Valve plug seal material
- NBR
- Other characteristics
- seat
- DN
Max.: 300 mm
(11.811 in)Min.: 50 mm
(1.969 in)- Pressure
10 bar, 16 bar
(145 psi, 232.1 psi)
Description
STANDARDS OF MANUFACTURE
EN 12334 CHECK VALVES IN DUCTIL IRON
EN 558 S48 (DIN 3202 F6) FACE TO FACE
EN 1092-2 DRILLING FLANGES
MATERIALS
BODY DUCTILE IRON EN GJS-400-15 EN 1563
OGIVE DUCTILE IRON EN GJS-400-15 EN 1563
DIAPHRAGM NBR EN 681-1
O-RING NBR EN 681-1
SEAT TESNIT BA-S EN 12164
CORROSION PROTECTION
COATED INSIDE-OUTSIDE
(FBE) EPOXY 150 MICRONS
CERTIFIATES
D.M. NR.174 – HEALTH DEPARTMENT (I)
TESTING
EN 12266-1 (ISO 5208) PRESSURE TESTS
GRADE “A”
ACCESSORIES
INTEGRAL BY-PASS
