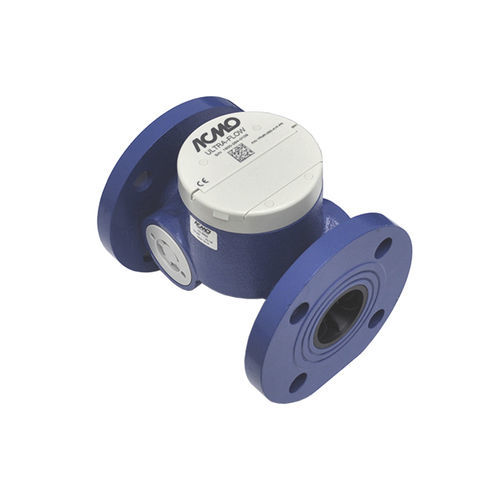

Ultrasonic flow meter k06z-650volumefor waterDN50 - 2"
Add to favorites
Compare this product
Characteristics
- Technology
- ultrasonic
- Type
- volume
- Fluid
- for water
- Pipe diameter
- DN50 - 2", DN100 - 4", DN80 - 3", DN65 - 2"1/2, DN125 - 5", DN60 - 2"1/4, DN90 - 3"1/2, DN150 - 6", DN200 - 8", DN175 - 7"
- Installation
- flange
- Protection level
- IP68
- Volumetric flow rate
Max.: 313 m³/h
(11,053.4907 ft³/h)Min.: 40 m³/h
(1,412.5867 ft³/h)- Process temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)- Process pressure
10 bar, 16 bar
(145.04 psi, 232.06 psi)- Precision
2 %
Description
STANDARDS OF MANUFACTURE
EN 1092-2 DRILLING FLANGES
MATERIALS
BODY CAST IRON EN 1561 (OPT. EN GJS-400-15 EN 1563)
CORROSION PROTECTION
COATED INSIDE-OUTSIDE
FIG.650 (FBE) EPOXY 300 MICRONS RAL 5005
FIG.650IRR (FBE) EPOXY 200 MICRONS RAL 7016
CERTIFIATES
D.M. NR.174 – HEALTH DEPARTMENT (I)
FIG.650B STANDARD: MID 2014/32/UE
FIG.650IRRB STANDARD: ISO 16399-2014
TESTING
EN 12266-1 (ISO 5208) PRESSURE TESTS
