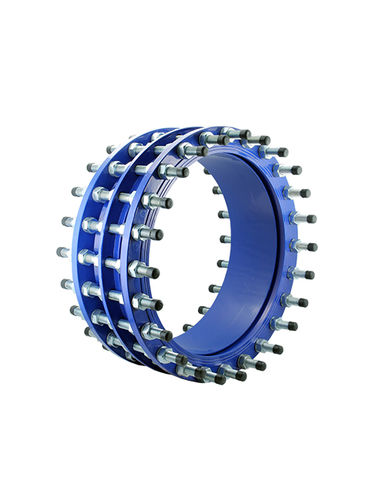

ACMO dismantling joints are designed to compensate for axial displacement of a pipe during installation and dismantling. This provides for easy installation and disassembly of flanged pipe work and fittings or flanged equipment such as valves, metersand pumps.
STANDARDS OF MANUFACTURE
EN 1092-1 DRILLING FLANGES CARBON STEEL
EN 1092-2 DRILLING FLANGES DUCTILE IRON
Features
PN 10-16-25-40-64
DN 40÷2600
FIG. 4000NR-4000NRI-4016NR-4016NRI–4025R-4025RI-4040-4064-4040I-4064I
MATERIALS
BODY
PN10-16-25 – EN GJS-500-7 DUCTILE IRON EN 1563
PN40-64 – S235JR CARBON STEEL EN 10025-1
FLANGE
PN10-16-25 – EN GJS-500-7 DUCTILE IRON EN 1563
PN40-64 – S235JR CARBON STEEL EN 10025-1
GASKET EPDM EN 681-1
BOLTS
FIG.4000NR-4016NR-4025R-4040-4065 – GALVANIZED STEEL CL.4.8 EN 898-1
FIG.4000NRI-4016NRI-4025RI-4040I-4064I – A2-70 STAINLESS STEEL
CORROSION PROTECTION
COATED INSIDE-OUTSIDE
(FBE) EPOXY 150 MICRONS
CERTIFIATES
D.M. NR.174 – HEALTH DEPARTMENT (I)
APPLICATIONS
WATER
TESTING
EN 12266-1 (ISO 5208) PRESSURE TESTS
