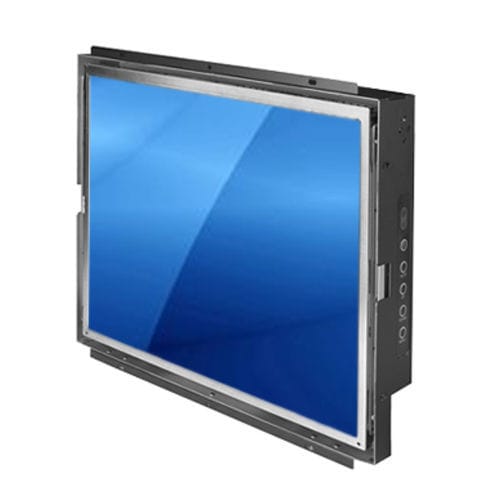

Open-frame monitor PM6170

LCDresistive touch screenLED backlight

The PM6170 is a 17" open frame LCD monitor with 1280 x 1024 resolution and a 250-nit LED backlight display. The monitor features multiple video inputs including VGA, HDMI, DVI, or DP input. Designed with a heavy-duty steel enclosure, this 17" open frame monitor is ideal for industrial or commercial applications and POS systems. Options are available for Resistive or Capacitive touch, AG or AR glass, EMI mesh shielding or UV film, 1000-nits high brightness LCD screen, and -30°C to 80°C wide working temperature range. Material Heavy-duty steel LCD Panel Brightness (cd/m²): 250-nits / With wide temp: 350-nits, Option for 1000-nits high brightness display Contrast Ratio (typ.): 800:1 Viewing Angle (H/V): 170° x 160° Active Area (mm): 337.92(H) x 270.34(V) Pixel Pitch (mm): 0.264(H) x 0.264(V) Response Time: ≤ 5ms Colors: 16.7M MTBF (hrs): 35,000 LCD Enhancements (Option) Option for EMI Mesh Shielding or UV film Option for AG Glass, AR Glass, Resistive touch, Capacitive touch OSD Buttons 5 x OSD buttons for Power On/Off, Auto, Up, Down, Menu Option for external OSD box Sensor (Option) Option for light sensor or motion sensor Digital Signage (Option) Option for MP-1080P Power Supply Input: AC-IN with built-in power Operation / Power Saving: 32.5 watt , < 2 watt (Support DPMS) Option for Isolated 9-36V DC-IN or 24V / 48V / 72V / 90V / 125V / 250V DC-IN Weight 11.02 lb / 5 kg Dimension 14.85"(W) x 13.31"(H) x 2.31"(D) Environmental Option for -30°C to 80℃ wide range working temperature Storage Temperature: -20°C to 60°C
