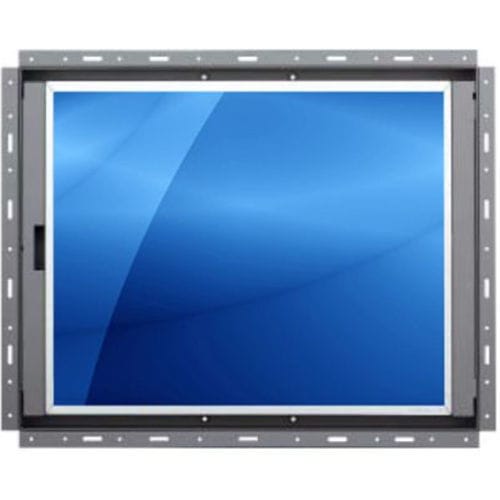

LCD monitor PMH8172

touch screenLED17.3"

High brightness open frame monitor with a 17.3 inch 1920 x 1080 Full HD 1000-nit LCD monitor, VGA + DVI-d video input, and an open frame metal construction. Option for resistive or projected capacitive type touch screen, HDMI + BNC + S-Video + Audio, MCS multi-dispaly OSD controller, and DC power input. Features: • Open frame metal construction • 17.3 inch 1920 x 1080 LED backlight industrial monitor • 1000-nit high brightness LCD monitor • VGA + DVI-D video input • Option for HDMI + S-Video + Composite (BNC) + Audio • Option for resistive or projected capacitive type touch screen • Option for MCS multi-display OSD controller • Universal or VESA (100mm) mount ready • External auto-sensing 100/240VAC power adapter • Option for 12V / 24V / 48V / 125V DC power supply Quick Overview 17.3" 1920 x 1080 full HD LCD monitor with a 1000-nit high brightness display, VGA + DVI-D video input, and an open frame metal construction. Material Heavy duty steel LCD Panel Size: 17.3 inch Max Resolution: 1920 x 1080 Brightness (cd/m²): 1000 Contrast Ratio (typ.): 600:1 Viewing Angle (H/V): 160° x 140° Active Area (mm): 381.888H x 214.812V Colors: 16.7M Backlight: LED MTBF (hrs): 50,000 Video Input VGA + DVI-D video input Option for HDMI + S-Video + Composite (BNC) or audio input Option for 3G / HD / SD-SDI with speaker Touch screen (option) Resistive or Projected Capacitive type touch screen monitor - USB Rear panel control Power on/off switch OSD membrane switch Mounting Type Universal mount or VESA (100mm) mount Connectors 1 x VGA + 1 x DVI-D port
