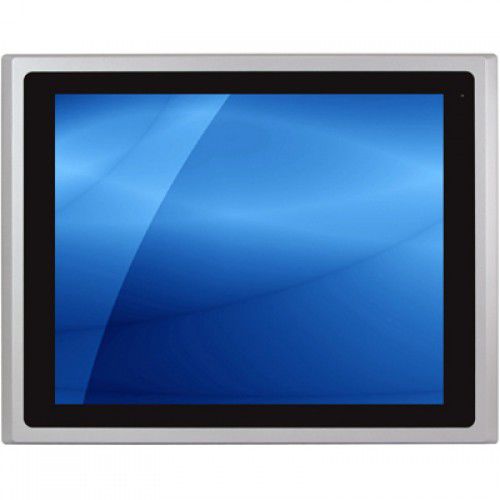

LCD monitor APA9170

touch screen17"1280 x 1024

Industrial monitor with a 17 inch 1280 x 1024 resistive type touchscreen display, VGA + DVI + HDMI + DP video input, and panel or VESA (100mm) mounting holes. The monitor features an aluminum die-casting chassis and IP66 rated waterproof flat front bezel. Option for Projected Capacitive type touch screen and 1000-nits high brightness. PRODUCT DESCRIPTION APA9170 presents a 17-inch panel mount monitor of 1280 x 1024 resolutions built with aluminum die-casting chassis and IP65 flat front bezel. The 2.55-inch short depth metal rugged construction houses a 17 inch LCD panel of 1280 x 1024, 350nit brightness, 1000:1 contrast ratio, 16.7 million colors, and 30,000 hours of mean time between failures. The option for 1000-nit high brightness is available. The touch screen is of resistive type with USB. The option for projected capacitive type touch screen with USB is available. The video input supports VGA, DVI, HDMI, and DP inputs. The connectors include 1 x VGA port, 1 x DP port, 1x DVI-D port, 1 x HDMI port, and 1 x 3-pin terminal block DC power input. Optional connectors include a Tack switch for VGA/DVI and Line in by phone jack. The power supply is of 9~36V DC. The monitor can be mounted via panel or VESA mount. The operational temperature is of 0°C to 50°C (32°F to 122°F). The relative humidity can tolerate at 10~90%, @ 40°C non-condensing. The unit measures at 17.28"(W) x 13.70"(H) x 2.55"(D).
