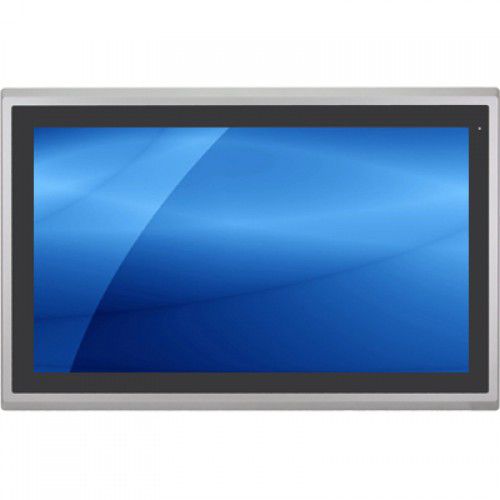

LCD monitor APA9215
resistive touch screenprojected capacitive touchscreen21.5"

LCD monitor - APA9215 - Acnodes Corporation - resistive touch screen / projected capacitive touchscreen / 21.5"
LCD monitor - APA9215 - Acnodes Corporation - resistive touch screen / projected capacitive touchscreen / 21.5"
LCD monitor - APA9215 - Acnodes Corporation - resistive touch screen / projected capacitive touchscreen / 21.5" - image - 2
LCD monitor - APA9215 - Acnodes Corporation - resistive touch screen / projected capacitive touchscreen / 21.5" - image - 3
Add to favorites
Compare this product


Characteristics

Technology
LCD, resistive touch screen, projected capacitive touchscreen
Display size
21.5"
Resolution
1920 x 1080, VGA
Mounting
panel-mount, VESA mounting
Applications
industrial, for heavy-duty applications
Other characteristics
wide, aluminum, VGA-DVI port, IP65, rugged

Description

Industrial monitor with a 21.5 inch 1920 x 1080 Full HD resistive type touch screen display, VGA + DVI + HDMI + DP video input, and panel or VESA (100mm) mounting holes. The monitor features an aluminum die-casting chassis and IP66 rated waterproof flat front bezel. Option for Projected Capacitive type touch screen and 1000-nits high brightness. Material Solid aluminum die-casting chassis LCD Panel Brightness (cd/m²): 250, option for 1000-nit Contrast Ratio (typ) : 3000:1 Viewing Angle (H/V): 178° x 178° Colors: 16.7M MTBF (hrs): 30,000 Rear panel control Power on/off switch OSD membrane switch Connectors 1 x 3-pin terminal block DC power input 1 x 2W speaker (option) Power supply Power Input: 9~36V DC power input with external AC power adapter Power Consumption: Max. 18W Weight 16.53 lb / 7.5 kg Dimension 21.94"(W) x 14.26"(H) x 2.55"(D) Environmental Storage Temperature: -30°C to 70°C Relative Humidity: 10~90% @ 40°C, non-condensing Certification CE/FCC, Class A

Catalogs

APA9215-SP
APA9215-SP
2 Pages
