Monitor for military applications AP-S2012

LCDresistive touch screen5-wire resistive touch screen

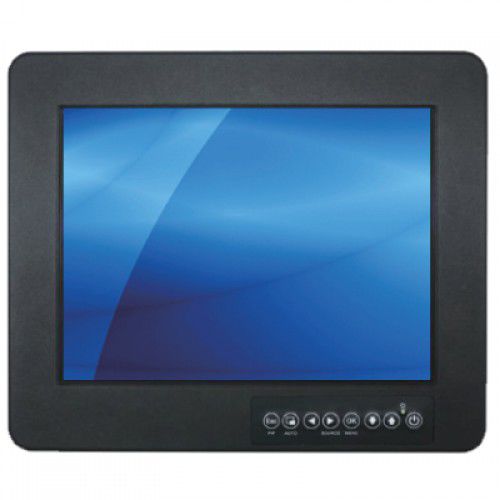

The AP-S2012 is a 12.1-inch rugged military display supporting 1024 x 768 resolution, 1000-nits high brightness, and a front AR protective glass. Designed with a full IP66 rugged enclosure with MIL-STD-810G and 461F testing standards and a wide working temperature range of -30°C to 60°C, the monitor is ideal for harsh working environments. The AP-S2012 features VGA + DVI input, optical bonding, D38999 connectors, and a 9 to 36V DC power input. It has rear VESA (75 x 75mm) mounting holes that allow users to easily mount the display into an enclosure, cabinet, or other applications. LCD Panel Brightness (cd/m²): 1000 Contrast Ratio (typ.): 1000:1 Viewing Angle (H/V): 176° x 176° Colors: 16.2M LCD Protection AR protective glass in front Optical bonding Panel Control Brightness Control: 0~100% dimming by OSD buttons Thermal Control: Heater Board / Heater Film Integrated Power Protection: Reversed Polarization Protection OSD Buttons 8 buttons front OSD controller (Including Power On/Off, Menu, Up, Down, Reset) Mounting Type VESA (75mm / 100mm) mounting holes Connectors 1 x VGA port (D38999 connector) 1 x DVI port (D38999 connector) Weight 6 +/- 0.5 kg Dimension 13.3”(W) x 10.87”(H) x 2.83”(D) Power Supply Power Input: 9~36V (D38999 connector) Power Consumption: 30 Watts (typical) Environmental Operating Temperature: -30°C to 60°C (-25.6°F to 140°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F)
