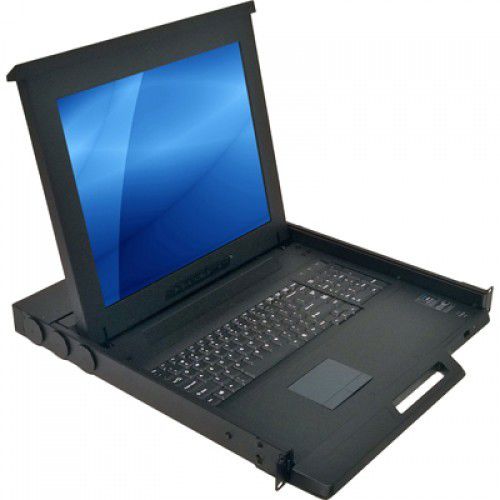

Console rack drawer KD9150H

keyboardLCD monitor1U

The KD9150H is a 16.2" WUXGA LCD rack console supporting 1920 x 1200 resolution, a 104-key keyboard with a 2-button touchpad, and 100/240VAC power input. The console features VGA + DVI-D + HDMI 1.4 video input, providing users with multiple options for connecting their devices. The KD9150H is integrated into a 1U rack enclosure that is designed for a standard 19" rack mount space for data centers and other IT environments The KD9150H short depth rack console fitted with a 104-key keyboard, touchpad, and a 16.2 inch LCD monitor is built for space-limited environments with high graphics demand. The built-in 16.2" inch LCD panel provides 300 nits of brightness at contrast ratios of 800:1, a max resolution of 1920 x 1200, and 16.7 M color. These attributes, make it easy to see fine details in complex in high-density images. Ideal for markets requiring high-end graphic capability. The KD9150H accepts VGA or DVI or HDMI video input signals and offers on-screen display allowing users to adjust display characteristics and select viewing options, rack console drawer features with a 104-key keyboard, touchpad with USB port connector. Measuring 1U high with 19-inch depth, KD9150H is designed for space-limited environments, This 1U monitor keyboard is housed in an all-steel enclosure that has built-in handles and ball-bearing slides that allow for smooth pull-in/out action. Also equipped with the unit is a power conserving function that allows extended monitor life cycles. It does this with an automatic switch that turns off when the unit is stowed away.
