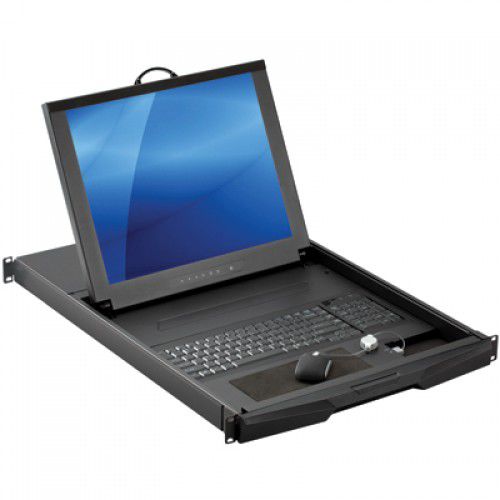

Console rack drawer KDN9172

keyboardLCD monitor1U

The KDN9172 is a 17" LCD rack console drawer with 1280 x 1024 resolution, 104-key keyboard with a wired mini USB optical mouse, and VGA video input. Desgiend for standard racks, it allows you to mount this console in 25.60 inches (650mm) of space for data centers and other IT environments. Options are available for DC power input. The 17-inch industrial monitor comes with a 1280 x 1024 display resolution and 16.7 million colors for better viewing. The monitor offered a standard 15-pin VGA connector on the back of the drawer for your PC connection. The OSD function lets you adjust the display for the best view. All the OSD buttons are located on the front of the LCD monitor for easy access. The monitor can be tilted to a 90-degree horizontal angle. The auto-shutoff function enables whenever the monitor drawer is back in its resting position. This allows you to save LCD monitor life. The keyboard and standard mouse (PS/2 or USB type) are located on the front of the rack mount drawer underneath the monitor. Both of them come with PS/2 or USB combo free type connector on the back of the chassis for your server connection. The slim-type (notebook size) keyboard comes with a function key and an optical mouse. The low profile 1U drawer saves on rack space and integrates an LCD monitor, keyboard, and pointing device into a complete unit. The ball-bearing slide rail was mounted on each side of the drawer that you can pull out the drawer from the 19-inch wide cabinet. The thumb locker is installed on the front panel to lock the drawer inside the rack when the monitor keyboard drawer is not using. The power supply supports an Auto-sensing 100 to 240VAC, 50/60Hz power input.
