Console rack drawer KD82234
keyboardLCD monitor1U

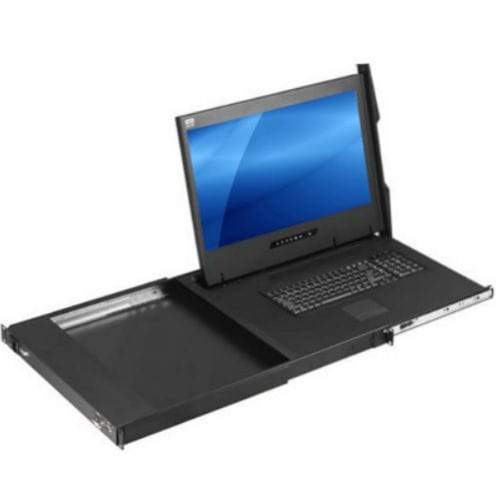

Console rack drawer - KD82234 - Acnodes Corporation - keyboard / LCD monitor / 1U
Console rack drawer - KD82234 - Acnodes Corporation - keyboard / LCD monitor / 1U
Console rack drawer - KD82234 - Acnodes Corporation - keyboard / LCD monitor / 1U - image - 2
Console rack drawer - KD82234 - Acnodes Corporation - keyboard / LCD monitor / 1U - image - 3
Console rack drawer - KD82234 - Acnodes Corporation - keyboard / LCD monitor / 1U - image - 4
Add to favorites
Compare this product


Characteristics

Options
keyboard, LCD monitor, console
Size
1U

Description

The KD82234 is a 23.8" 4K rackmount console drawer featuring 3840 x 2160 native resolution, 104-key keyboard with touchpad, and DP 1.2 video input in a 1U high rackmount drawer designed for a standard 19" rack mount space. The drawer features a side-open design (left or right side open) for different installation environments. In addition, the KD82234 is available as a stand-alone console or with an optional 8-port 4K KVM switch. The KVM switch mounts into the rear of the 1U chassis and allows users to control up to 8 servers from one keyboard, mouse, and monitor setup. Material Heavy-duty steel LCD Monitor Size: 23.8 inch Native Resolution: 3840 x 2160 Brightness: (cd/m²) 250 Contrast Ratio (typ): 1000:1 Colors: 1.07 Billion, 10-bit Viewing Angle (H/V): 178° x 178° Response Time (ms): 25 Dot Pitch (mm): 0.13725 Display Area (mm): 527.04H x 296.46V Surface Treatment: Anti-glare Surface Hardness: 3H Backlight: LED MTBF (hrs): 30,000 Keyboard & Pointing Device 104-key keyboard with 2-button touchpad - USB port Option for keyboard with trackball or SUN keys Video Input Display Port 1.2 video input Option for HDMI 2.0, front USB hub, or 3G-SDI input Integrated 8-Port 4K KVM Switch (Option) KVM Port: 8 Connector: HDMI 2.0 + USB-B ( Video + KB / MS ) Resolution: 16 : 9 - max. 3840 x 2160@60Hz / 16 : 10 - max. 1920 x 1200@60Hz / 4 : 3 - max. 1600 x 1200@60Hz Local Console: 1 x local console KVM Cables (Option) 6ft HDMI-USB KVM cable (CB-HDMI4K) or 6ft DP-USB KVM cable (CB-DP) Speakers Built-in dual stereo speakers

Catalogs

KD82234
KD82234
2 Pages
