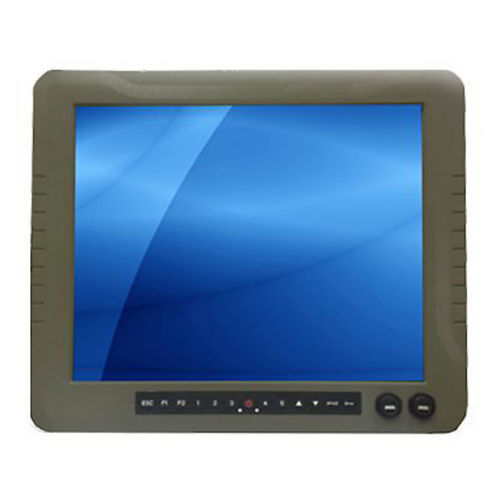

LCD panel PC PCM8015W
LED backlight5-wire resistive touch screen15.6"

LCD panel PC
LCD panel PC
LCD panel PC
Add to favorites
Compare this product


Characteristics

Screen type
LCD, LED backlight, 5-wire resistive touch screen
Display size
15.6"
Resolution
1920 x 1080
Processor
Intel® Core™ i7-6600U
Operating system
Windows 10
Construction
fanless
Mounting
VESA mounting
Applications
industrial, for hazardous areas, for marine applications
Protection level
IP67, rugged, MIL-STD-810
Other characteristics
wide temperature range

Description

Military-grade panel PC with a 15.6 inch 1920 x 1080 FHD LCD touchscreen and a fully IP67 rated rugged enclosure with MIL-STD-810G testing standards and -20°C to 60°C wide range working temperature. The PC is powered by the 6th generation Intel Core i7-6600U 2.6GHz CPU and supports 3 x GbE LAN, 2 x COM ports, and 2 x USB 2.0 ports. Options are available for optical bonding, speakers, front IP67 rated USB ports, GPS module, and DC power supply. Features: • Fully IP67 rated rugged enclosure • 15.6 inch 1920 x 1080 LED backlight monitor • 5-wire resistive type touch screen monitor • 1000-nits high brightness LCD panel • 6th generation Core i7-6600U 2.6GHz CPU • 3 x GbE LAN, 2 x COM, 2 x USB 2.0 (D38999 connectors) • MIL-STD-810G -20°C to 60°C wide range working temperature • 9~36V isolated DC power input, option for AC power input

Catalogs

PCM8015W
PCM8015W
2 Pages
