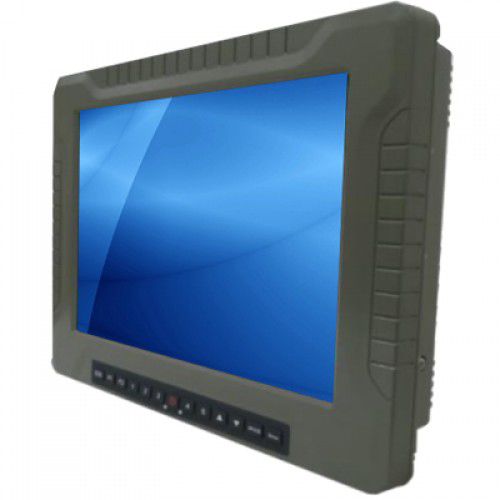

LCD panel PC PCM8215
LED backlightcapacitive touch screen5-wire resistive touch screen

LCD panel PC
LCD panel PC
LCD panel PC
Add to favorites
Compare this product


Characteristics

Screen type
LCD, LED backlight, capacitive touch screen, 5-wire resistive touch screen
Display size
15"
Resolution
1024 x 768
Processor
Intel® Core™ i5-6200U
Operating system
Windows 10
Construction
fanless
Mounting
VESA mounting, embedded
Applications
industrial, for hazardous areas, for marine applications
Protection level
IP65, full IP65, rugged, MIL-STD-810
Other characteristics
wide temperature range

Description

Military-grade panel PC with a 15 inch 1024 x 768 1000-nit high brightness LCD monitor and a fully IP65 rated rugged enclosure with MIL-STD-810G compliance and -20°C to 60°C wide range working temperature. The PC is powered by the 6th generation Intel Core i5-6200U 2.3GHz CPU with 8GB memory and 125GB SSD. Option for stereo speakers, optical bonding, front IP rated USB ports, GPS module, and external AC power adapter. Features: • Fully IP65 rated rugged enclosure • 15 inch 1024 x 768 LED backlight monitor • 5-wire resistive type touch screen monitor • 1000-nit high brightness LCD panel • 6th generation Core i5-6200U 2.3GHz CPU • 1 x HDMI output, 1 x GbE LAN, 2 x COM, 2 x USB 2.0 • MIL-STD-810G -20°C to 60°C wide range working temperature • 9~36V DC isolated DC power input, option for AC power adapter

Catalogs

PCM8215
PCM8215
2 Pages
