Box PC FES9280

embeddedIntel® Core™ i7-6600URS-232

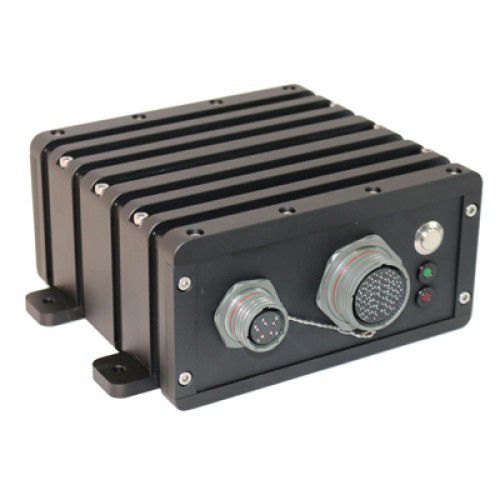

Rugged fanless embedded PC with an IP67 rated waterproof and dustproof design that meets MIL-STD-810F and MIL-STD-461F EMC testing standards. Powered by the Intel 6th Gen. Core i7-6600U 2.6GHz processor with the Intel SoC chipset, it supports an 8GB DDR3L memory, VGA + DVI video output, 2 x USB, 2 x COM, and 1 x LAN. The embedded system also features a 9~36V DC power input and extended working temperatures from -20°C to 60°C. A military-grade fanless box PC with Intel 6th generation Skylake Core i7-6600U 2.6GHz sealed in a fully IP67 housing with MIL-STD-810F and MIL-STD-461F EMC compliance. With the compact dimension of 300 x 130 x 120mm, its operating temperature can withstand from -4°F to 140°F (-20°C to 60°C), ready to combat harsh environments. Along with the ability to tolerate both severe operating and storage temperatures, it is MIL-STD-810F in temperature, vibration, and shock and MIL-STF-461F EMC compliant. Of standard testing, the unit can survive extreme temperatures, has vibration and shock resistant features, and guard off radiation. The vibration tolerance is certified MIL-STD-810F Method 514.5 Procedure I, 2.5G, 5~500Hz/XYZ. The shock tolerance is certified MIL-STD-810F Method 516.5 Procedure 1, 40G, 11ms. To complement it all, the full IP67 rated has complete protection from dust and the effect of immersion of water between 15cm and 1m. FES9280 offers Intel 6th generation Skylake Core i7-6600U 2.6GHz with Intel SoC Integrated chipset and DDR3L 1066MHz SO-DIMM 8GB memory. The storage contains mSATA SSD 64GB and expansion slot supports one bay swappable slot for 1 x 2.5 inch SATA HDD. The output consists of DVI and VGA.
