Intel® Core™ i3-6100TE panel PC PCA80156
TFT LCDresistive touch screenPCAP capacitive touch screen

Intel® Core™ i3-6100TE panel PC - PCA80156 - Acnodes Corporation - TFT LCD / resistive touch screen / PCAP capacitive touch screen
Intel® Core™ i3-6100TE panel PC - PCA80156 - Acnodes Corporation - TFT LCD / resistive touch screen / PCAP capacitive touch screen
Intel® Core™ i3-6100TE panel PC - PCA80156 - Acnodes Corporation - TFT LCD / resistive touch screen / PCAP capacitive touch screen - image - 2
Intel® Core™ i3-6100TE panel PC - PCA80156 - Acnodes Corporation - TFT LCD / resistive touch screen / PCAP capacitive touch screen - image - 3
Intel® Core™ i3-6100TE panel PC - PCA80156 - Acnodes Corporation - TFT LCD / resistive touch screen / PCAP capacitive touch screen - image - 4
Add to favorites
Compare this product


Characteristics

Screen type
TFT LCD, resistive touch screen, PCAP capacitive touch screen, multi-touch screen
Display size
15.6"
Resolution
1366 x 768
Processor
Intel® Core™ i3-6100TE
Operating system
Windows 10, Windows 7, Windows embedded
Construction
aluminum frame
Applications
industrial
Protection level
IP66, waterproof front panel

Description

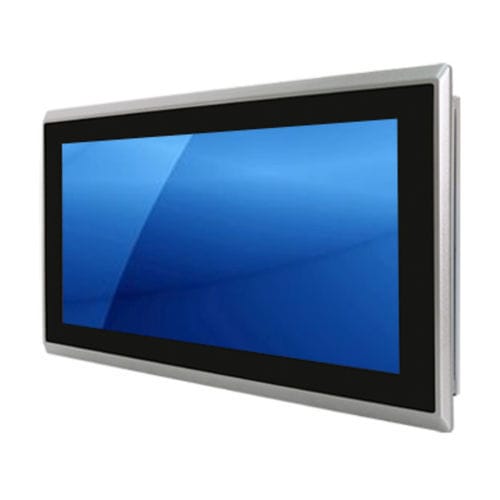

The PCA80156 is a 15.6" expandable industrial touch panel PC with a full metal chassis and an IP66-rated aluminum die-casted front bezel design. The system is powered by the 6th Generation Intel Core i3-6100TE CPU and supports 2 x SO-DIMM memory, up to 32GB. The panel PC features abundant I/O ports such as 4 x USB 3.0, 2 x LAN, 3 x COM, 1 x VGA, 1 x line out, and 1 x mic-in. It provides 2 x expansion slots which offer the expandability to integrated versatile applications. 15.6" expandable touch panel PC supporting 1366 x 768 display resolution, Intel Core i3-6100TE CPU, 2 x expansion slots, panel mount, and 9~36V DC power input.
