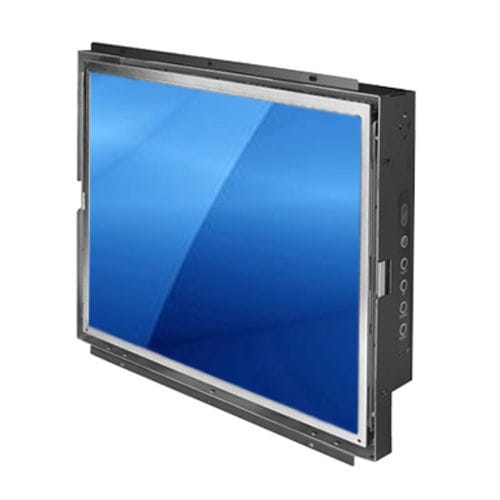

Open frame monitor PM6190

LCDresistive touch screenLED backlight

The PM6190 is a 19-inch open frame LCD monitor with 1280 x 1024 resolution and a 250-nit LED backlight display. The monitor features multiple video inputs including VGA, HDMI, DVI, or DP input and an AC power input with built-in power. Designed with a heavy-duty steel enclosure, this 19" open frame monitor is ideal for industrial or commercial applications and POS systems. Options are available for a 1000-nits high brightness display, EMI mesh shielding or UV film, Resistive or Capacitive touch, light or motion sensor, MP-1080P digital signage, external OSD box, and -20°C to 70°C wide working temperature range. The PM6190 is a 19-inch open frame monitor supporting displays images with resolutions up to 1280 x 1024 with an LED backlight. Supporting 16.7 million colors with 250-nits brightness, the monitor depicts the finest details accurately and clearly. An option is available for a 1000-nit high brightness display for outdoor environments. It features VGA + HDMI + DVI video input with options for VGA + HDMI + DP input or 3G-SDI. For the power supply, it supports an AC power input with built-in power. Option for Isolated 9-36V DC-IN or 24V / 48V / 72V / 90V / 125V / 250V DC-IN. With the heavy-duty steel construction providing durability and weighing only 13.23 lbs, the monitor can be mounted with the front face mounting holes or the rear VESA (100 x 100mm) mount.
