Measurement microphone 22 mV/Pa, 200 kHz | 7052PH Type 1.5™dynamicfree-field
Add to favorites
Compare this product
Characteristics
- Applications
- measurement
- Technology
- dynamic
- Other characteristics
- free-field
Description

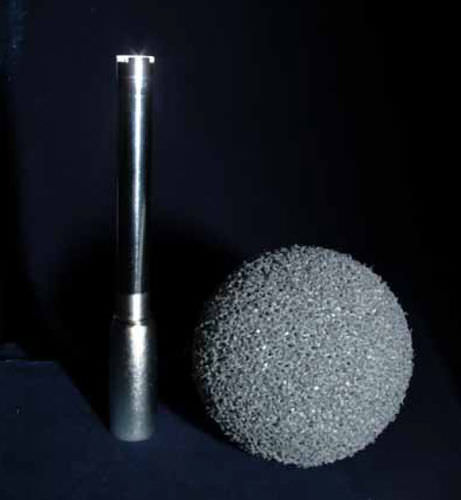

The 7052PH Type 1.5TM phantom powered measurement microphone system offers a cost effective solution to acoustic measurements from phantom powered sources. Designed to work with from 48 to 18 Vdc Phantom Power, the 7052PH features the 7052H. Its rugged Titanium diaphragm provides excellent longterm stability and temperature performance. The companion 4048 ACOtronTM preamp offers both low noise and a wide dynamic range. A WS1 3" Windscreen is included.
7052H 1/2 Inch Electret Free Field Microphone
* Type 1.5TM - a superior Type 2
* Frequency Response: 20kHz typ.(capsule)
* Sensitivity: 22 mV/Pa (-33 dBV/Pa)typ.
* Dynamic Range (capsule) 1% THD: <20dBA-150dBSPL (Capsule)
* Diaphragm Material: Titanium
* TempCo: 0.01 dB/C
* Mounting Thread: 11.7 mm 60UNS2
