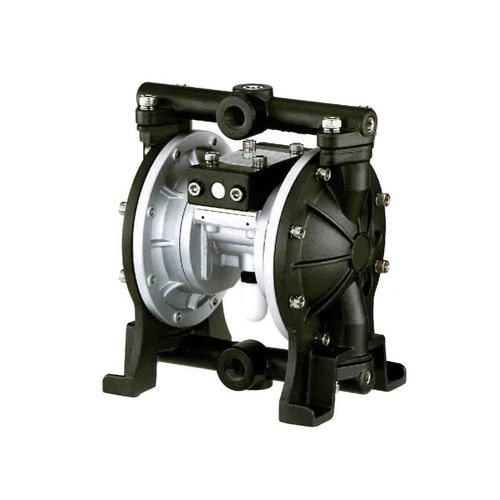

Diaphragm pump DS03airair-drivenself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- air
- Operation
- air-driven
- Priming
- self-priming
- Mobility
- stationary, mobile
- Domain
- industrial
- Material
- Teflon®
- Flow
8.46 us gal/min
(32.02458 l/min)- Pressure
Min.: 0.5 bar
(7.252 psi)Max.: 8.3 bar
(120.381 psi)- Fluid temperature
Min.: -30 °C
(-22 °F)Max.: 120 °C
(248 °F)- Length
22 cm
(9 in)- Width
16 cm
(6.3 in)- Height
24 cm
(9.45 in)- Weight
4 kg
(8.82 lb)
Description
Liquid inlet & outlet 3/8"PT (BSP)
Air inlet 1/4"PT (BSP)
Air outlet 1/4"PT (BSP)
Working pressure advised 1.5~5bar (kgf/cm²) ; 21.75psi~72.5psi
Quantity / cycle 80ml
Solid limit ¢1.5mm
Air consumption 240Liter/per min; 8.47Scfm/per min
Inlet lift (deep) 6 m-wet; 3.7m-dry
