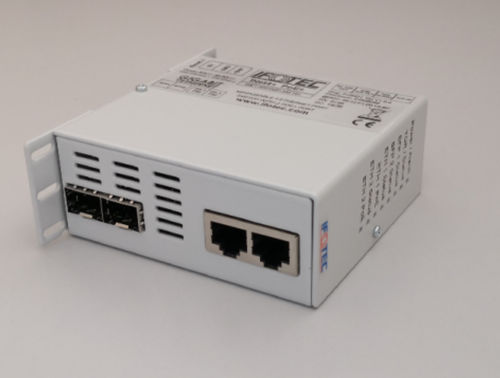

Managed switch IB2087

gigabit EthernetDIN railstandard

Manageable 4-port PoE+ Gigabit Ethernet switch including 2 PoE+ copper ports (PSE) and 2 optical ports on SFP Digital I/O Space-saving box Each PSE (Power Supply Equipment) type PoE+ RJ45 port can provide up to 35W to PD-type (Powered Device) PoE equipment Disconnection of PoE+ power supply from PoE+ Ethernet ports by supervisory software VLAN configuration, QoS management and flow control Network loop management: Spanning Tree (STP / RSTP) IGMP Snooping V1/V2 for multicast stream management by VLAN Triggering of automatic configuration loading via DHCP options Supervision by web server and TELNET + monitoring functions via SNMP (data rates, link status, MAC address table, etc.) Configuration file management (by web page and TFTP) Professional software features (VLAN translation, Port mirroring, etc.) Energy efficiency Ethernet (802.3az) management Flat mounting or DIN rail mounting (optional) Power supply 48 to 60VDC (54VDC nominal) Product warranty: 3 years This Ethernet switch is composed of 2 PoE+ copper ports (802.3at standard) and 2 Gigabit Ethernet optical ports. It is used to build an optical chain or self-healing loop network to connect 1 to 2 IP devices on each switch. These units are perfectly adapted for: Motorway networks Sensitive and industrial sites Telecommunications rooms Each port can be controlled independently using Level 2 Ethernet (VLAN) functions. The different management interfaces make it easy to automate product monitoring. The initial configuration can be automatically downloaded when the power is turned on. Operating indicators for the product’s main functions provide diagnostic support. This switch is presented in a mini individual case.
